What Does it Do?

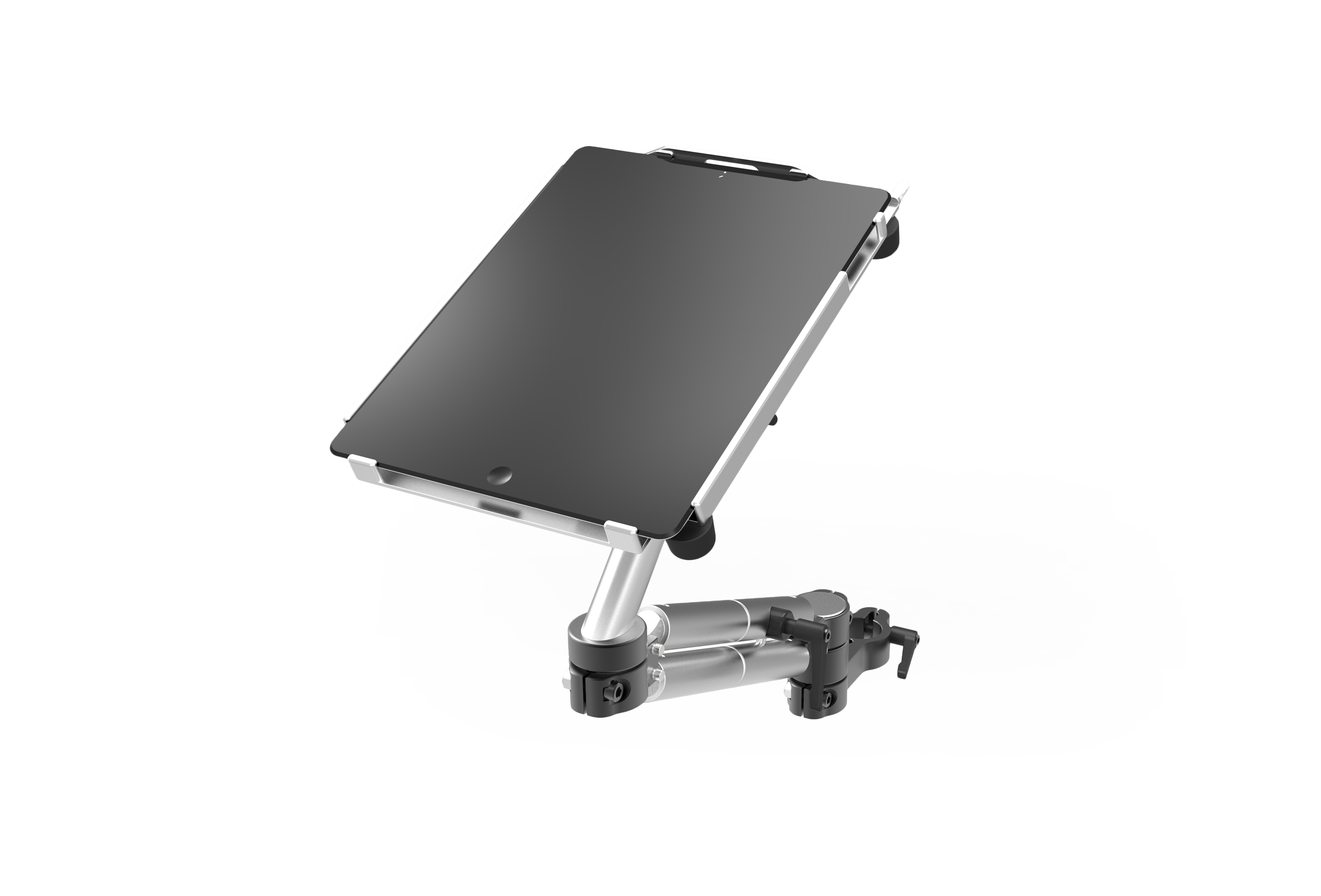

The Lift and Lock System is a line of mounting arms and attachments designed to make other objects more accessible and functional.

Lift and Lock arms hold other items for the user and connect to a bed, wheelchair, table or floor stand. Making this mounting possible is the variety of mounting brackets that we have that address the broad variety of mounting scenarios.

To get a better visual of how the system all fits together, click the link below to build your own virtual system.

Build your system

Articulating Arm

Articulating Arm with Riser

M2

M2X

M2 Max

Head and Tail Arm

Head and Tail Arm with Riser

Part # 8072

Part # 8073

Part # 8074

Part # 8069

Part # 8127

Part # 8224

Part # 8374

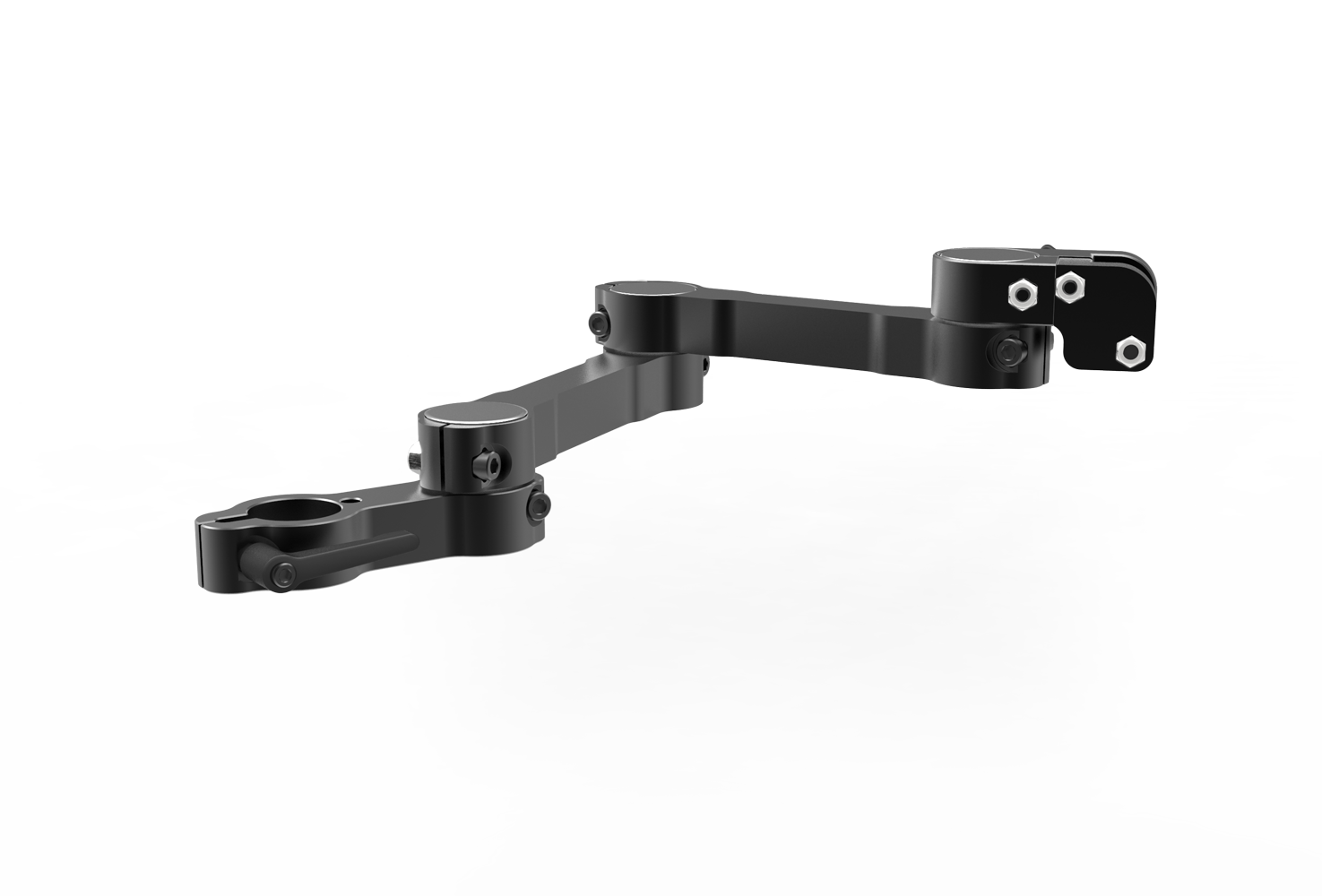

The Articulating Arm is a strong and sturdy system that is ideal for holding items that only require horizontal movement. With easily locking joints, the arm can be fixed in a desired position or loosed to move out of the way. The standard three joints of this arm allow for it to conveniently reach around obstacles if needed.

The Articulating Arm with Riser offers the strength and stability of the Articulating Arm with the added convenience of vertical movement. The riser is operated with two simple buttons that lock it at set increments. This feature prevents the arm from lowering over time and makes it easier for you to place your device with precision.

The M2 Arm is our lightest weight-yielding compression cylinder arm. Meant to hold anything from 0 to 5 pounds, this arm works great for holder your smaller devices like a tablet. The compression cylinder riser gives it a smooth, floating movement and can easily be locked in place with a turn of a handle.

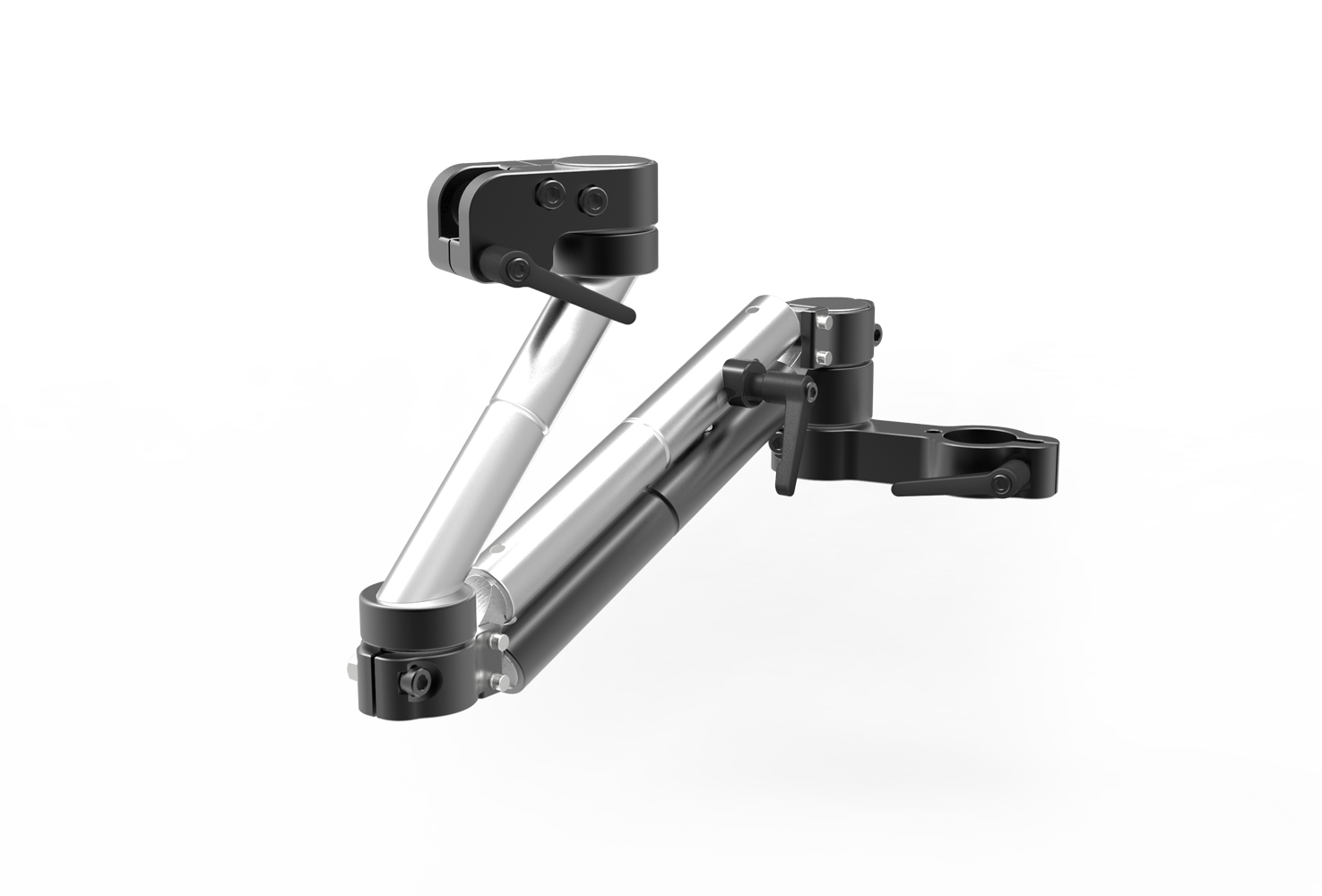

The M2X Arm is our middle-weight compression cylinder arm. This arm can hold items that range from 5 to 10 pounds like a laptop. The compression cylinder riser gives it a smooth, floating movement and can easily be locked in place with a turn of a handle.

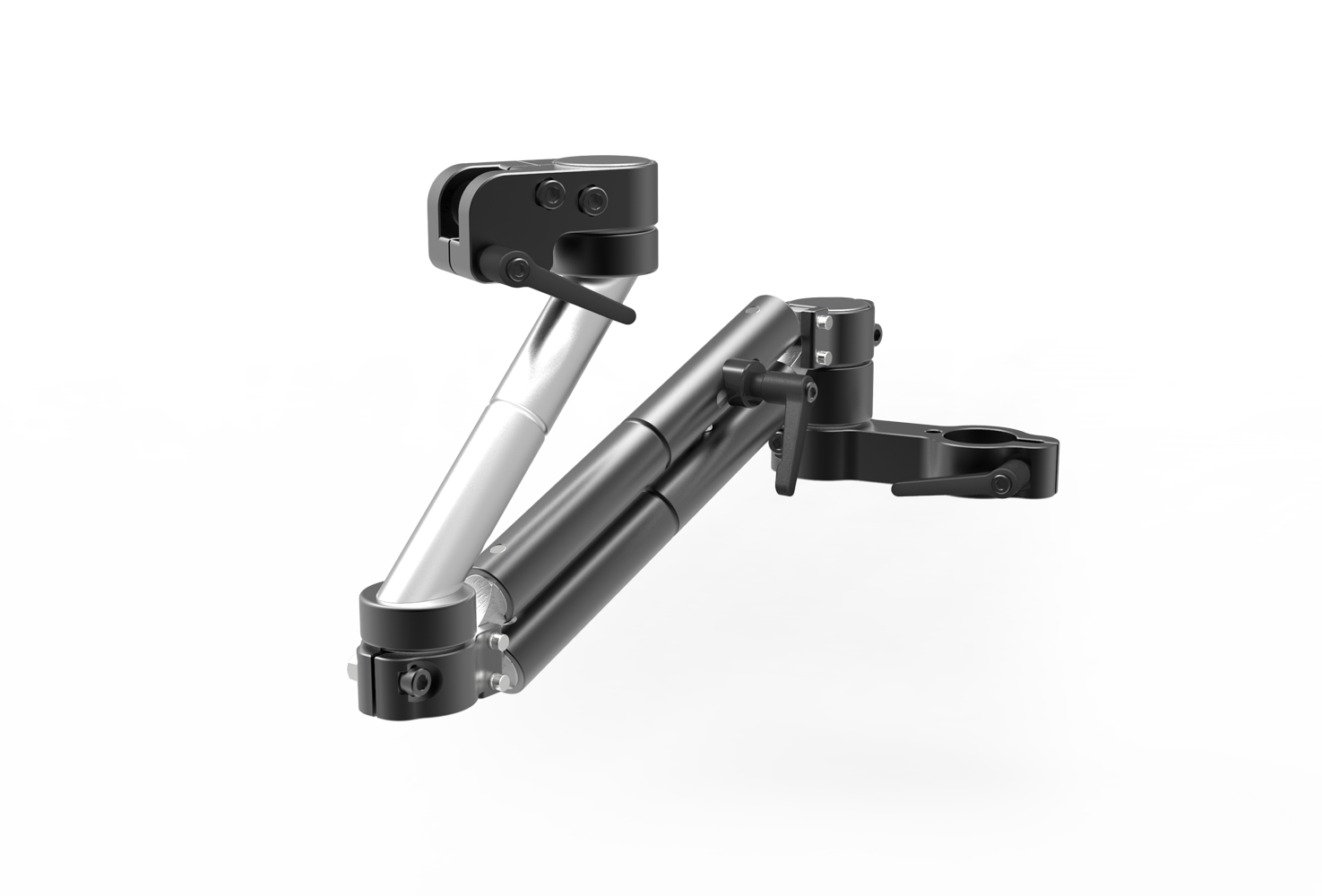

The M2 Max Arm is our heaviest weight-yielding compression cylinder arm. It is capable of holding heavier items, ranging from 10 to 15 pounds. Items that would fall into this weight class would include certain computer monitors and various communication systems. The compression cylinder riser gives it a smooth, floating movement and can easily be locked in place with a turn of a handle.

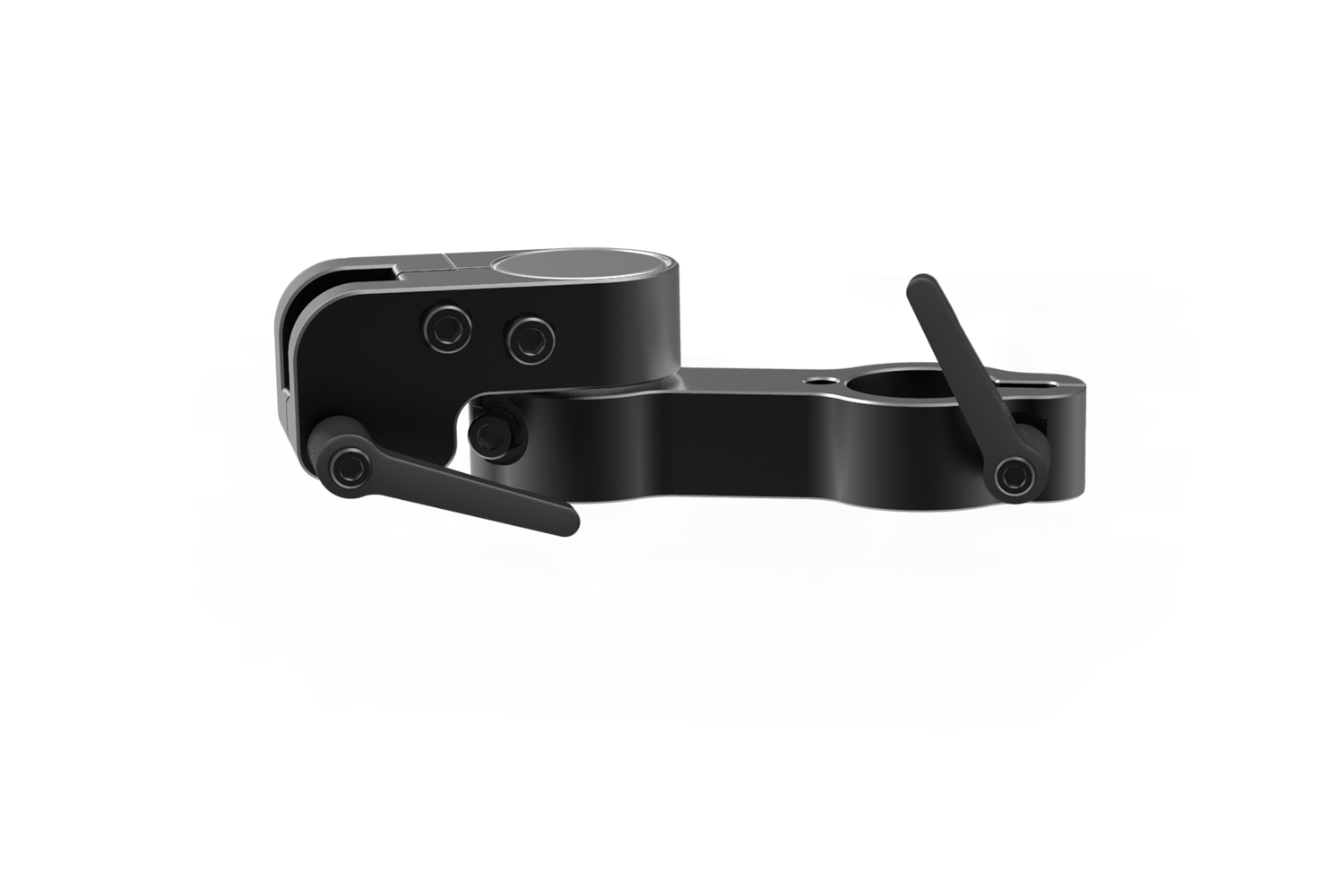

The Head and Tail Arm is our shortest length mounting arm. It is intended to hold heavy items that are beyond the weight yielding range of our other arms. It is mounted onto a Vertical Bar, on which is can slide vertical to a desired location and lock in place. The strong arm gives it a smooth lateral range of motion.

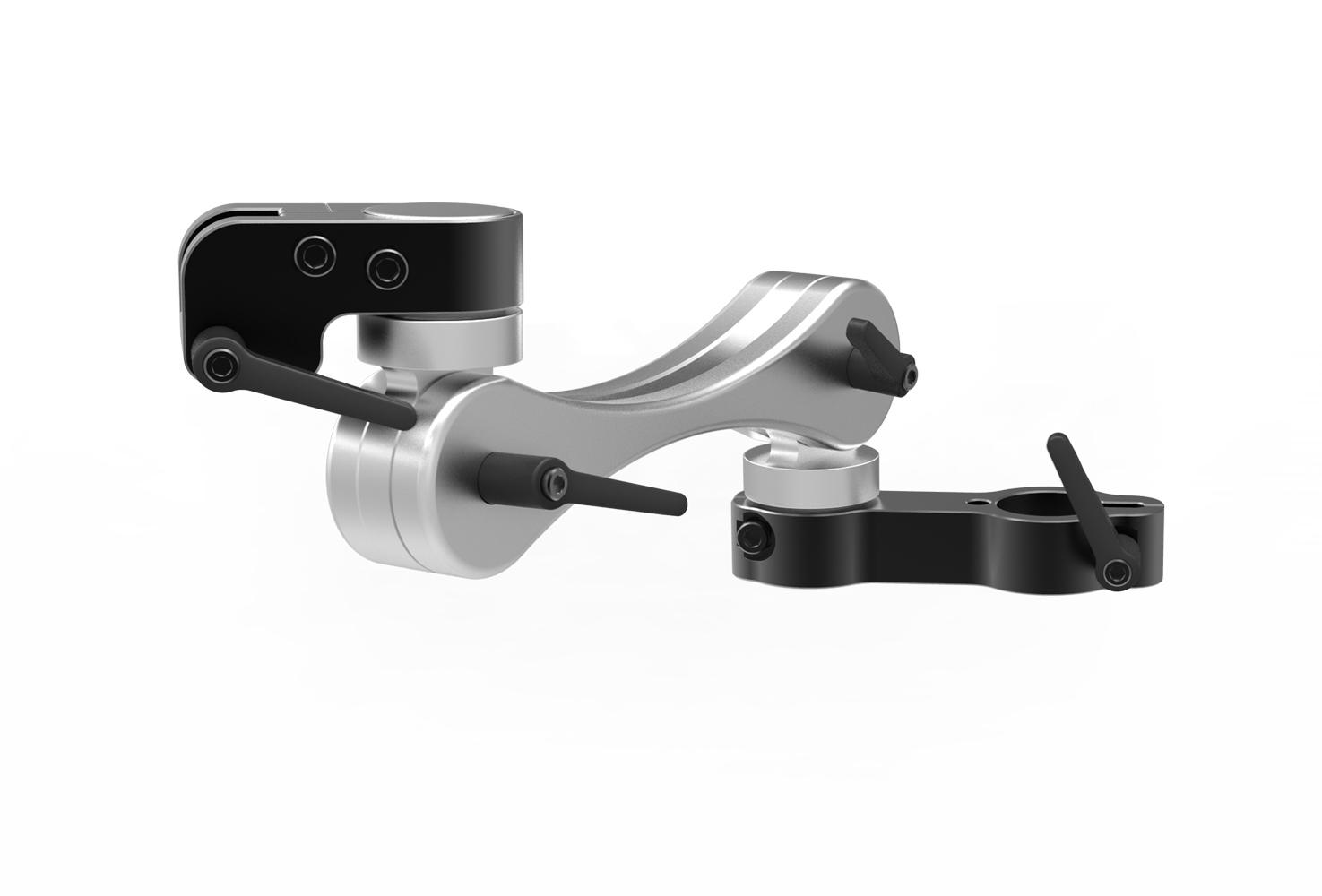

The Head and Tail Arm with Riser is another heavy weight-bearing arm. Like the Head and Tail Arm, it is intended to hold devices that would be too heavy for other arms. This arm has the added feature of vertical adjustability. The Riser clicks into place allowing the user to customize its height easily as well as manoeuvre it laterally.

Build your system

Customize Your System

Lift and Lock Systems are designed to cater to the needs of the user. Everyone user's needs are specific and unique. In order to account for this, the system must offer a diverse range in customization. By utilizing universal joints, each bone of the arm can be interchanged to transform it into exactly what you need.

Lift and Lock arms are capable of holding a wide range of communication and assistive living devices, as well as more personalized items. Because each individual may require a different assistive device, these mounting arms can be easily modified to suit a specific scenario.

Direct Mount Socket

Serrated Direct Mount Socket

Vertical Serration Direct Mount Socket

T-Track Direct Mount Socket

T-Nut Bracket

Double T-Nut Bracket

90 Degree Bracket

Square Tube Bracket

Full Ring Bracket

Zero Clearance

Serrated Socket Bar

Socket Bar

Telescopic Block

Helio Adapter Bracket

Part # 7106

Part # 8163

Part # 8540

Part # 8115

Part # 6446

Part # 7992

Part # 6320

Part # 6278

Part # 6146

Part # 6145

Part # 8511

14 Inch Part # 6147                 22 Inch Part # 7635

Part # 7107

Part # 8471

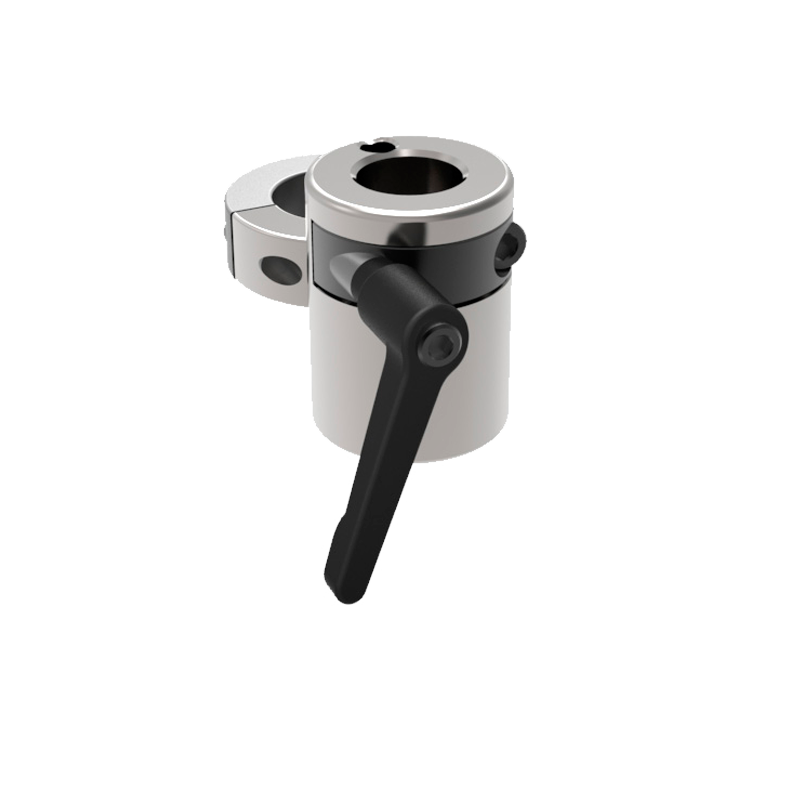

The Direct Mount Socket is used in instances where vertical bars are available to be mounted on. It offers a close and secure connection to a frame and does not require a socket bar.

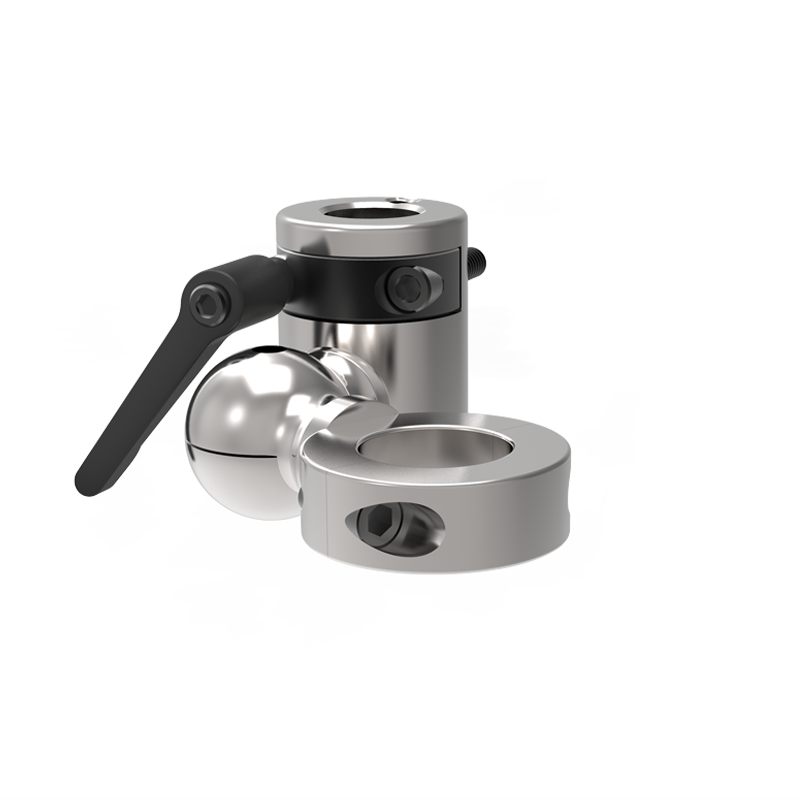

The Serrated Direct Mount Socket mounts to vertical bars. It offers the close connection of a Direct Mount Socket with the added serrated feature, adding another level of customization to the mounting system.

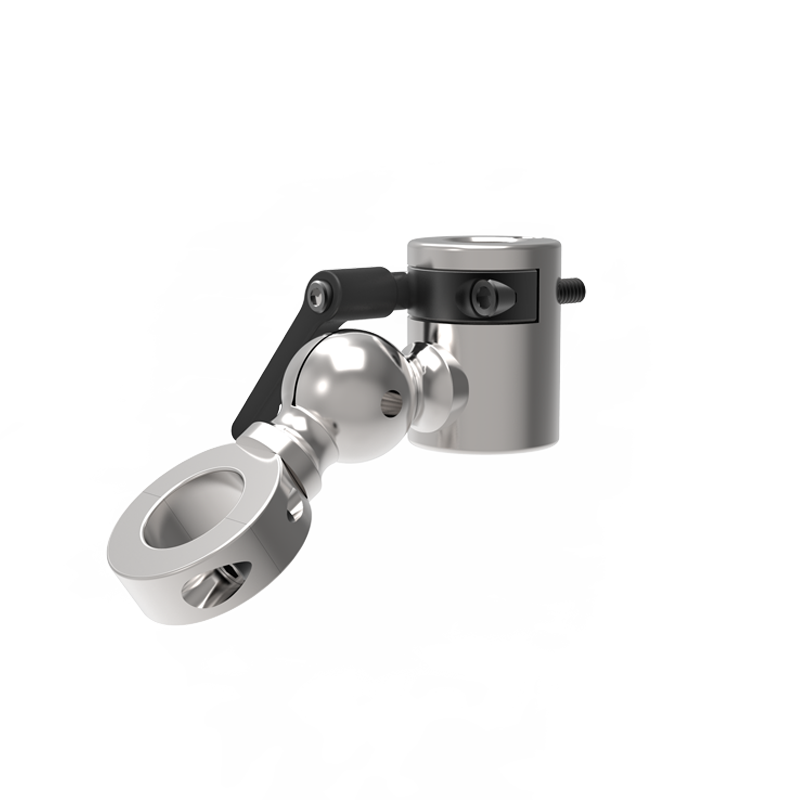

This type of Serrated Direct Mount Socket features a vertical serration. Vertical serration allows it to change degrees vertically while mounted to a vertical bar.

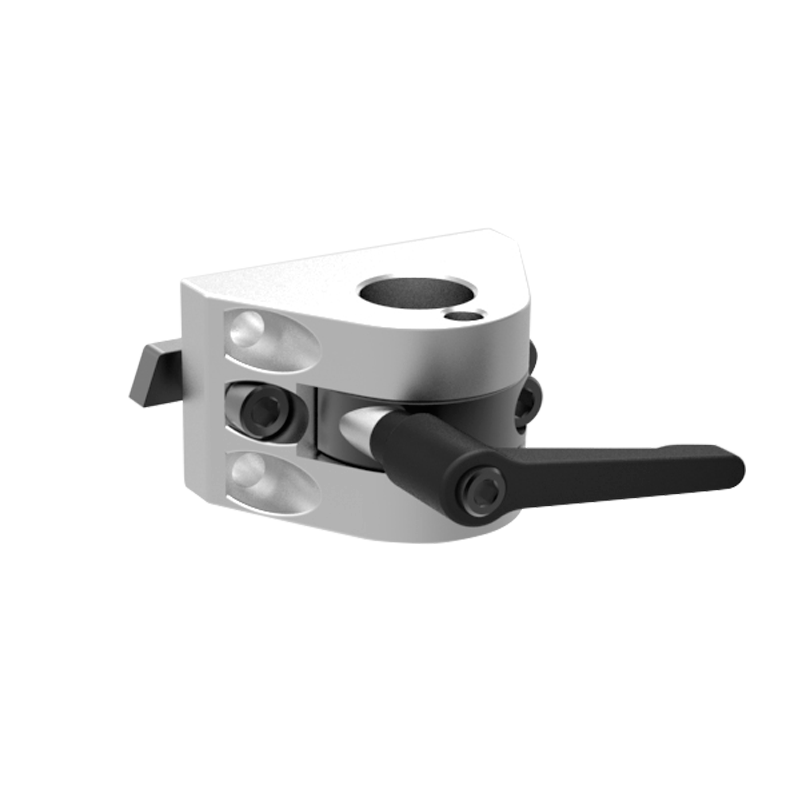

The T-Track Direct Mount Socket is useful when a single or double T-Track is present. The T-Nuts allow the socket to slide to a desired position and are then tightened to clamp to the track.

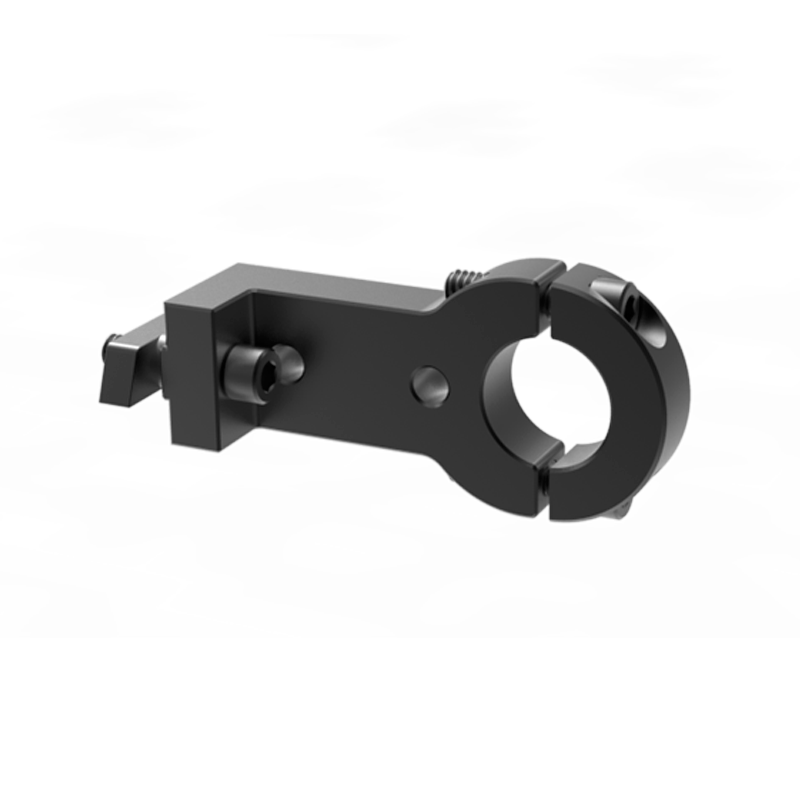

The T-Nut Bracket is useful when a single T-Track is present. The T-Nuts slide into the track and are tightened to clamp to the track. T-Nut Brackets come in pairs to remove any movement in the socket bar.

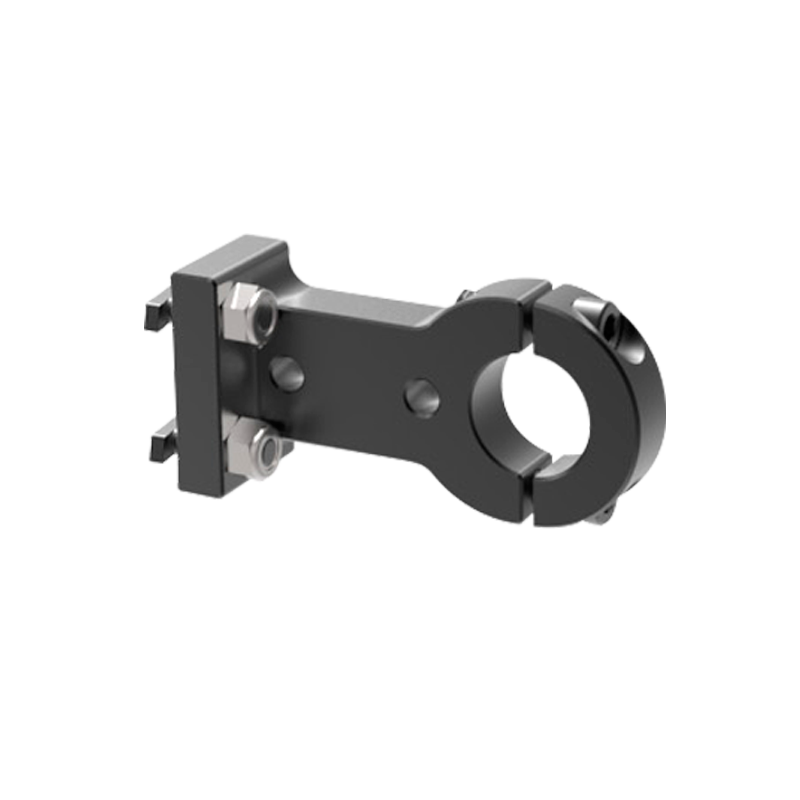

The Double T-Nut Bracket is useful when a double T-Track is present. The T-Nuts slide into the track and are tightened to clamp to the track. Double T-Nut Brackets come in pairs to remove any movement in the socket bar.

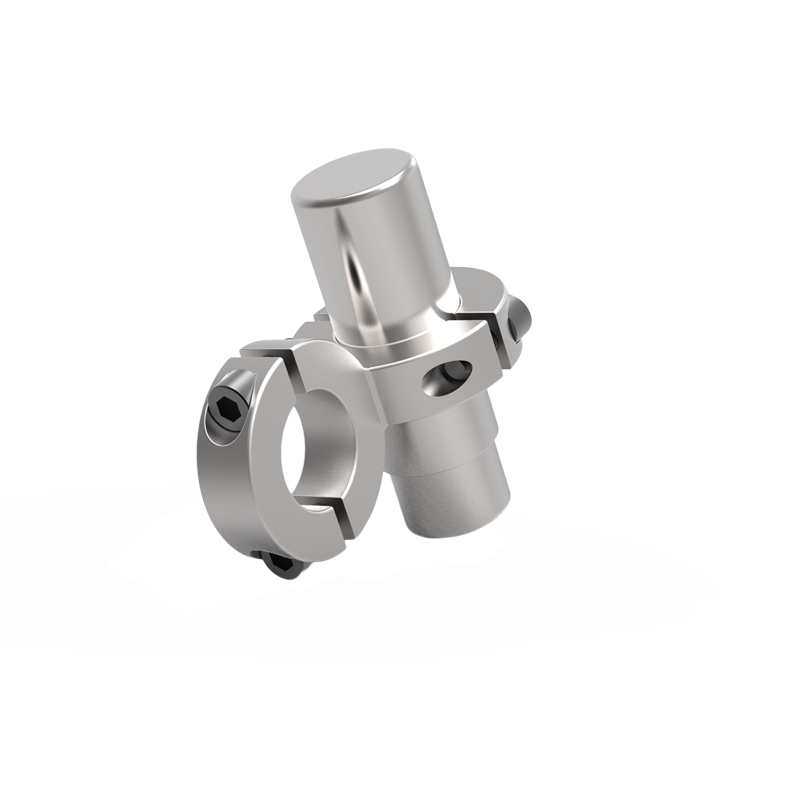

The 90 Degree Bracket is a special mounting device that allows a Direct Mount Socket to mount onto a horizontal tube. It comes with two different mounting hole sizes to accomodate either 1 inch or 0.875 inch tubing.

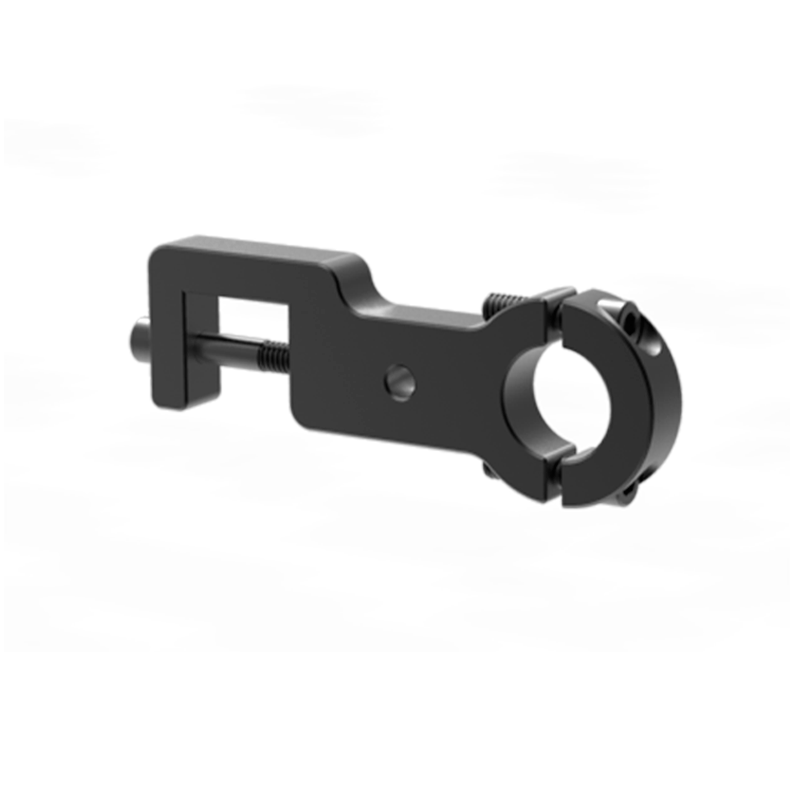

The Square Tube Bracket is designed to fit on 1 inch square tubing. By mounting to a square tube, the corners affectively deter the clamp from shifting. Square Tube Brackets come in pairs to remove any movement in the socket bar.

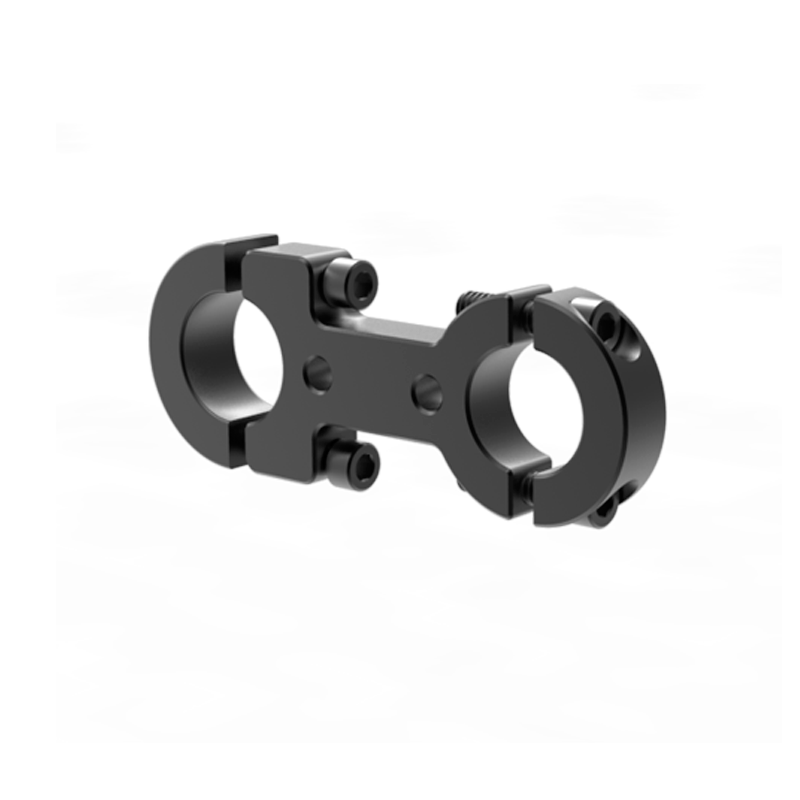

The Full Ring Bracket is intended to mount to a round, horizontal bar and is coupled with a socket bar. Full Ring Brackets come in pairs to remove any movement in the socket bar.

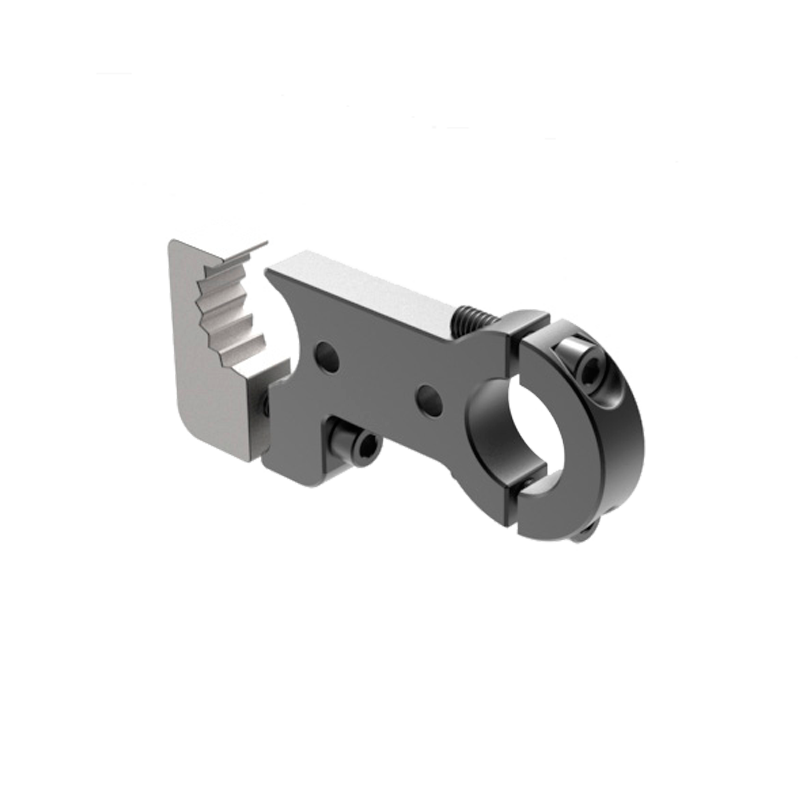

The Zero Clearance Bracket is intended to mount to a round, horizontal bar in circumstances where the full circumference of the tube is not accessible and works in tandem with a socket bar. Zero Clearance Brackets come in pairs to remove any movement in the socket bar.

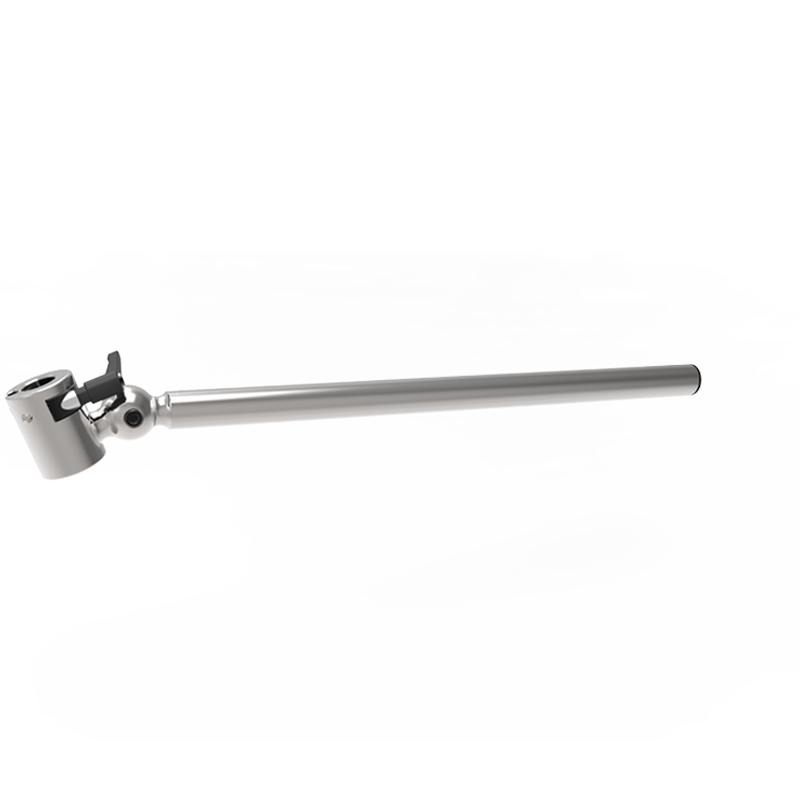

The Serrated Socket Bar is much like other socket bars in function except for the serration. This allows the bar to mount to a chair that tilts or is on an angle while maintaining an acceptable outlet for a vertical bar.

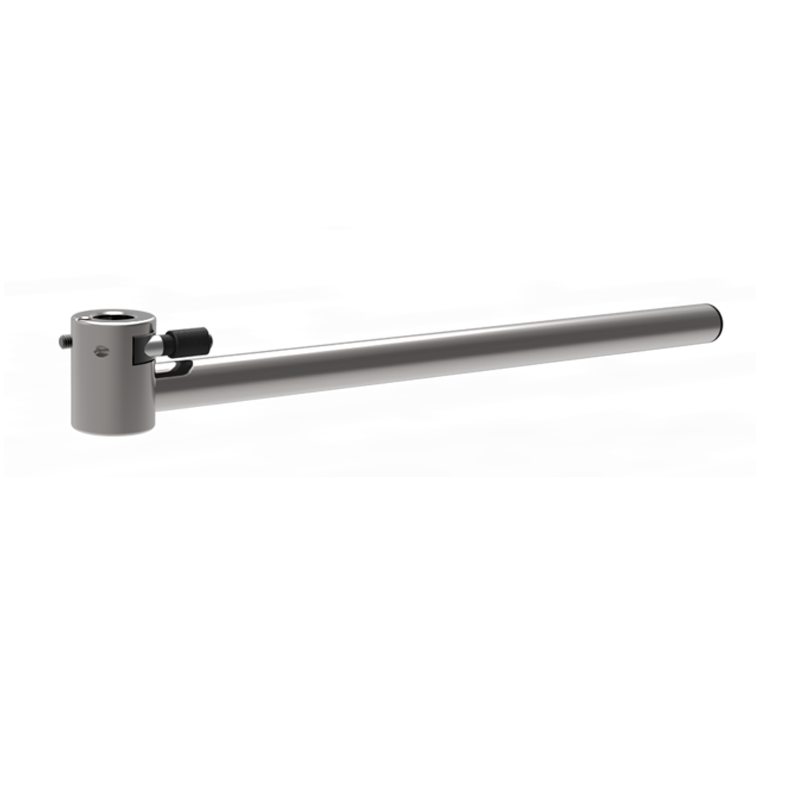

Socket Bars are what bridge the gap between vertical bars and frame clamps. While being held in place by a pair of frame clamps, a Socket Bar will in turn hold a vertical bar in place. A 14 inch and 22 inch length are available to better provide custom positioning.

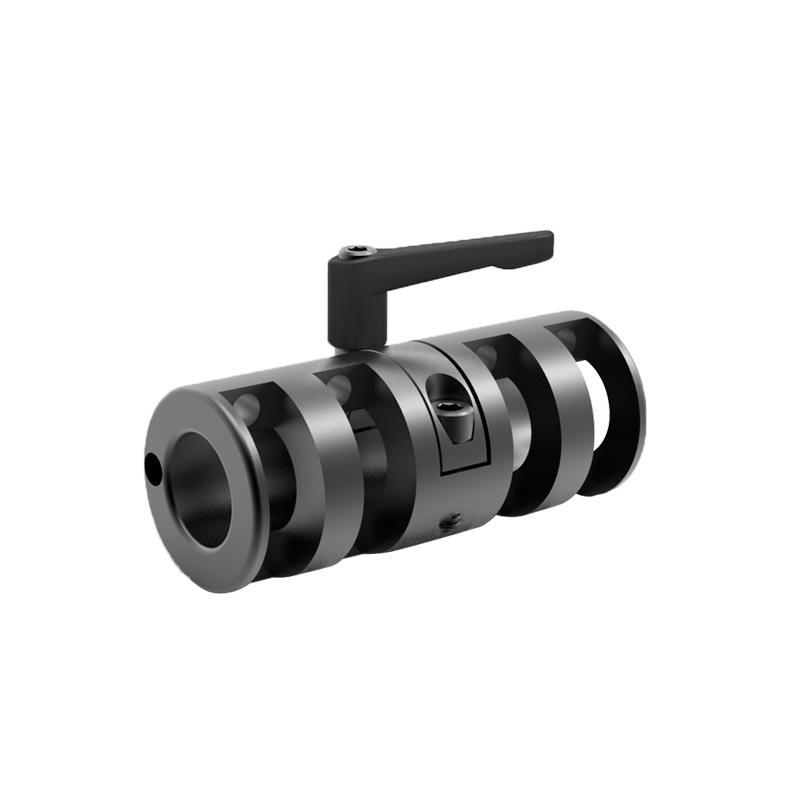

The Telescopic Block is another way to add more adjustability to your system. Used to hold a Socket Bar, the Telescopic Block allows the Socket Bar to slide in and out and can lock in place at a desired location. A pair of frame clamps is required for mounting to a wheelchair.

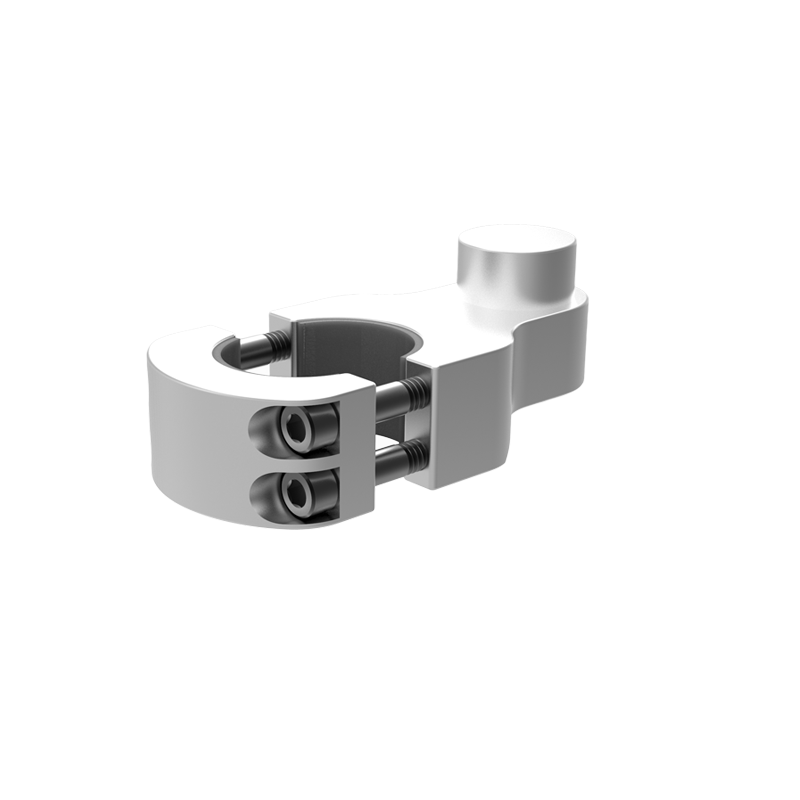

The Helio Adapter Bracket is the connection between the Lift and Lock System and a Helio wheelchair. This adapter clamps onto the frame of the wheelchair and provides a location for a Direct Mount Socket to be fixed to.
