Wedge
Receivers

Rotary Wedge Receiver

Lockable Wedge Receiver

Direct Mount Receiver

Heavy Duty Wedge Receiver

Ball Joint Wedge Receiver

Multi-Positional Wedge Receiver

T-Bar Wedge Receiver

EG Wedge Receiver

Part # 8075

Part # 8076

Part # 9458

Part # 7530

Part # 7782

Part # 7580

Part # 7485
Part # 9552

Part # 8801

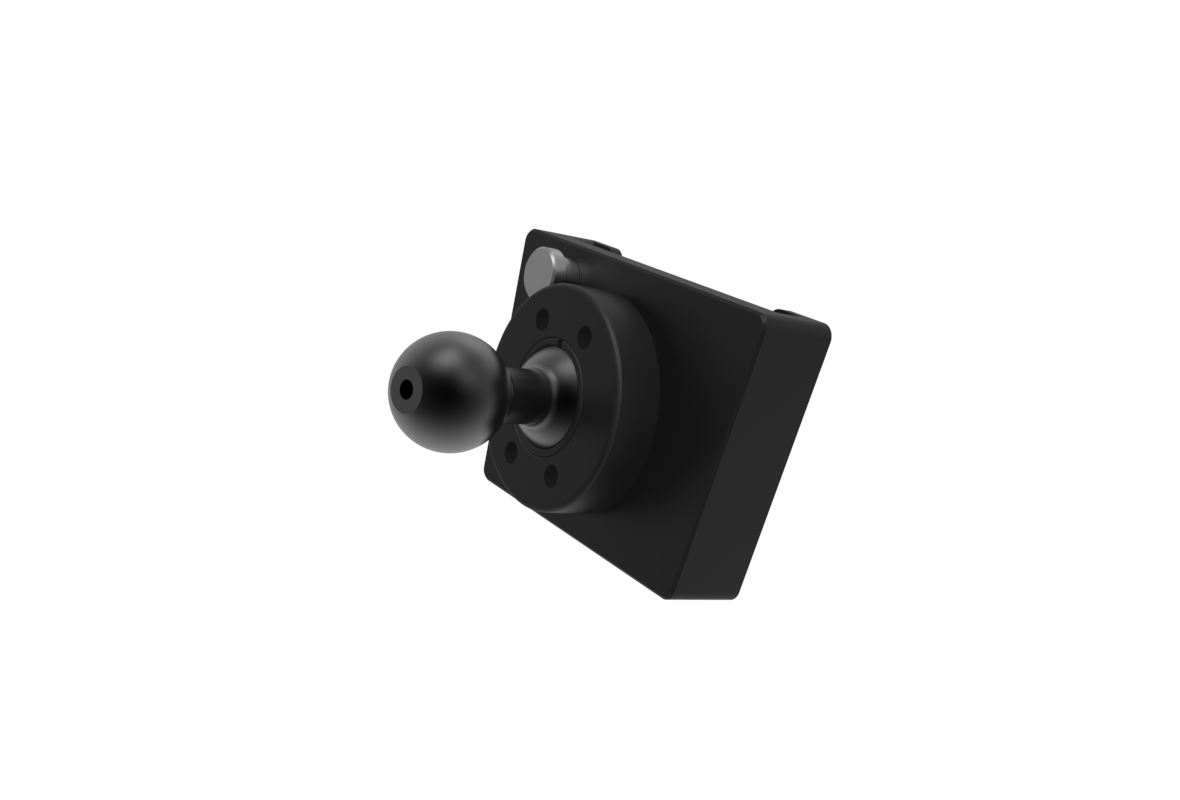

The Rotary Wedge Receiver is designed to conveniently hold devices like tablets or small laptops. It features a double ball attachment, which provides more range in the rotation of whatever it might be holding. Switching a tablet from portrait to landscape format can be done easily without having to remove the device. This wedge receiver is compatible with any Lift and Lock Arm.

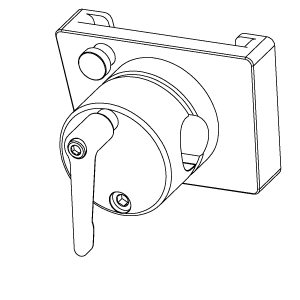

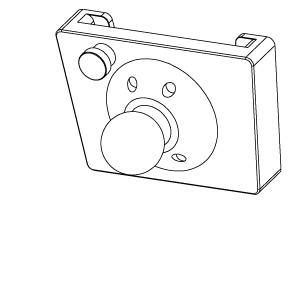

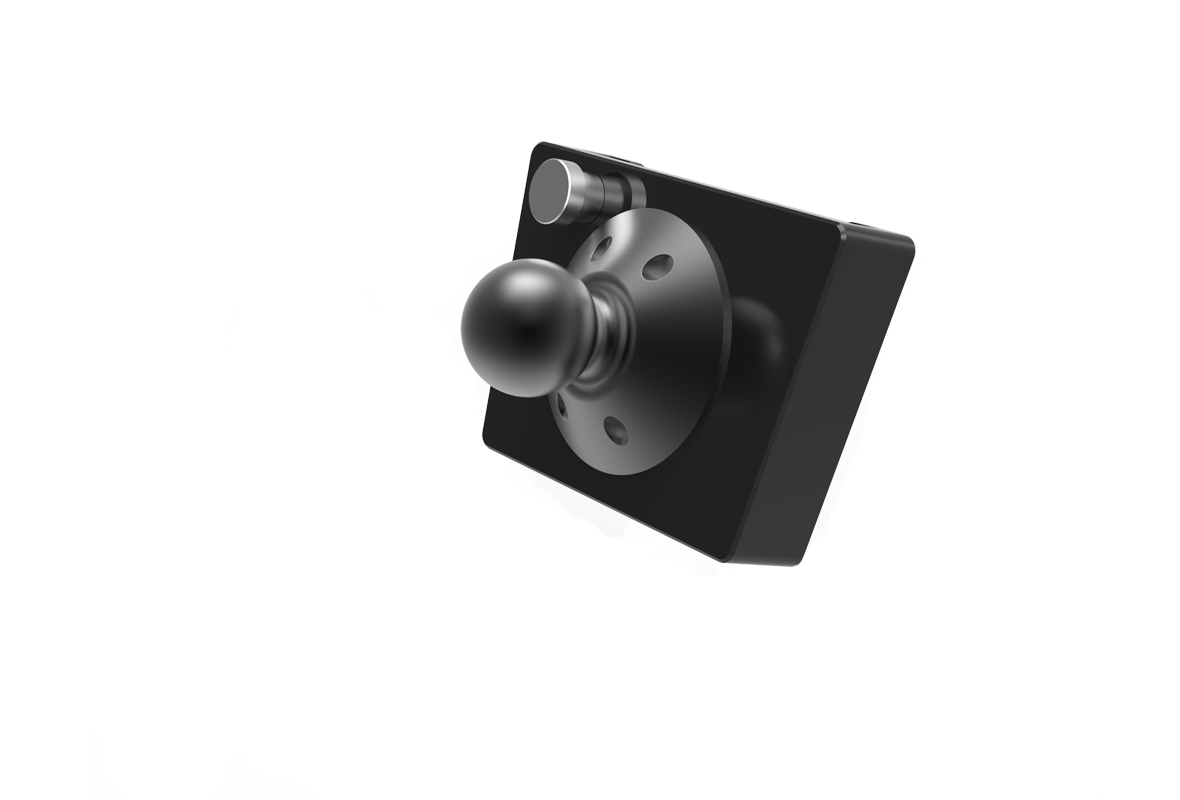

The Lockable Wedge Receiver is intended to hold heavier devices like laptops or computer monitors. The mounting ball gives it a large range of positions to choose from, and then can be locked in place with the turn of a handle. This wedge receiver is compatible with all Lift and Lock arms.

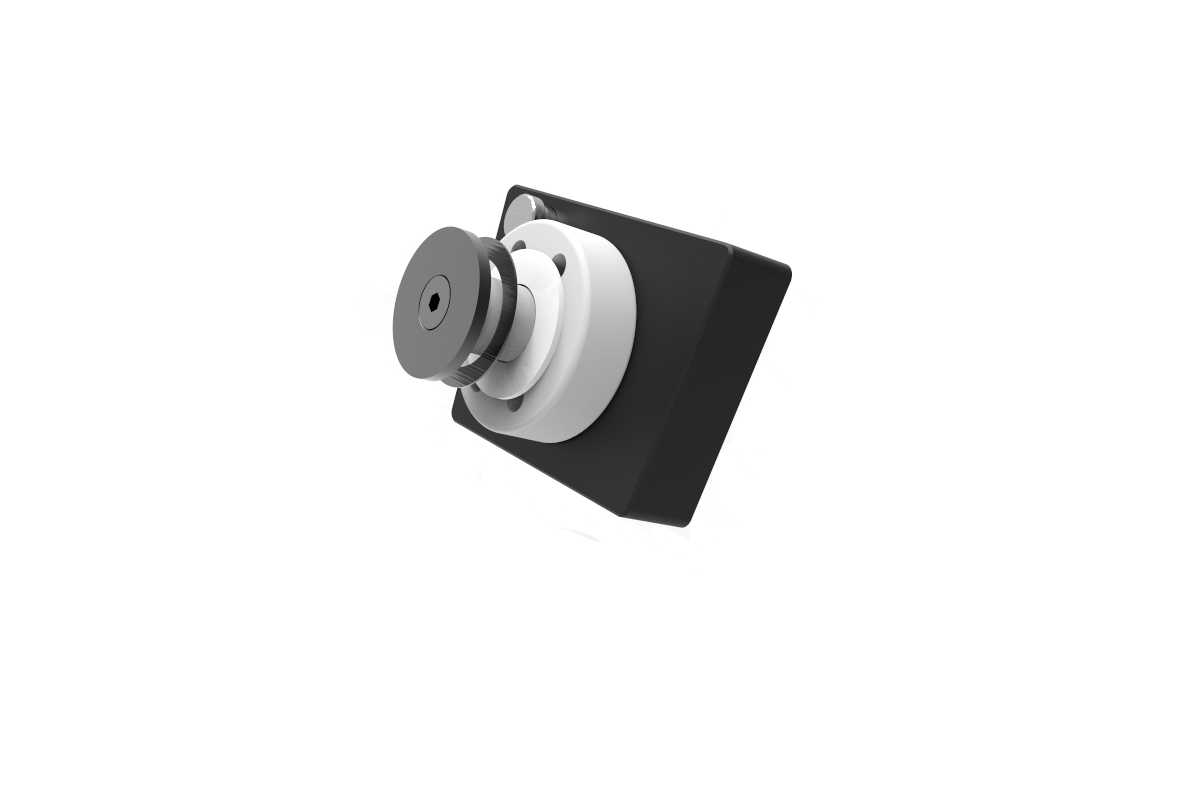

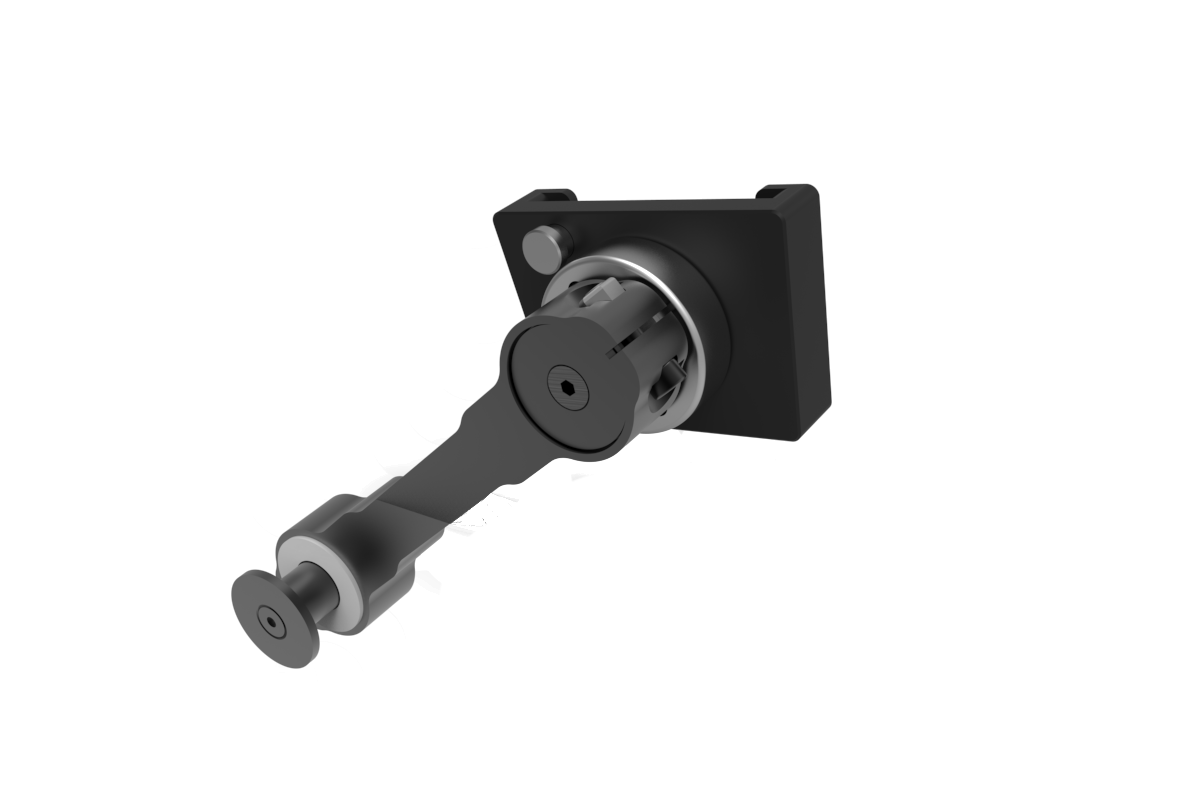

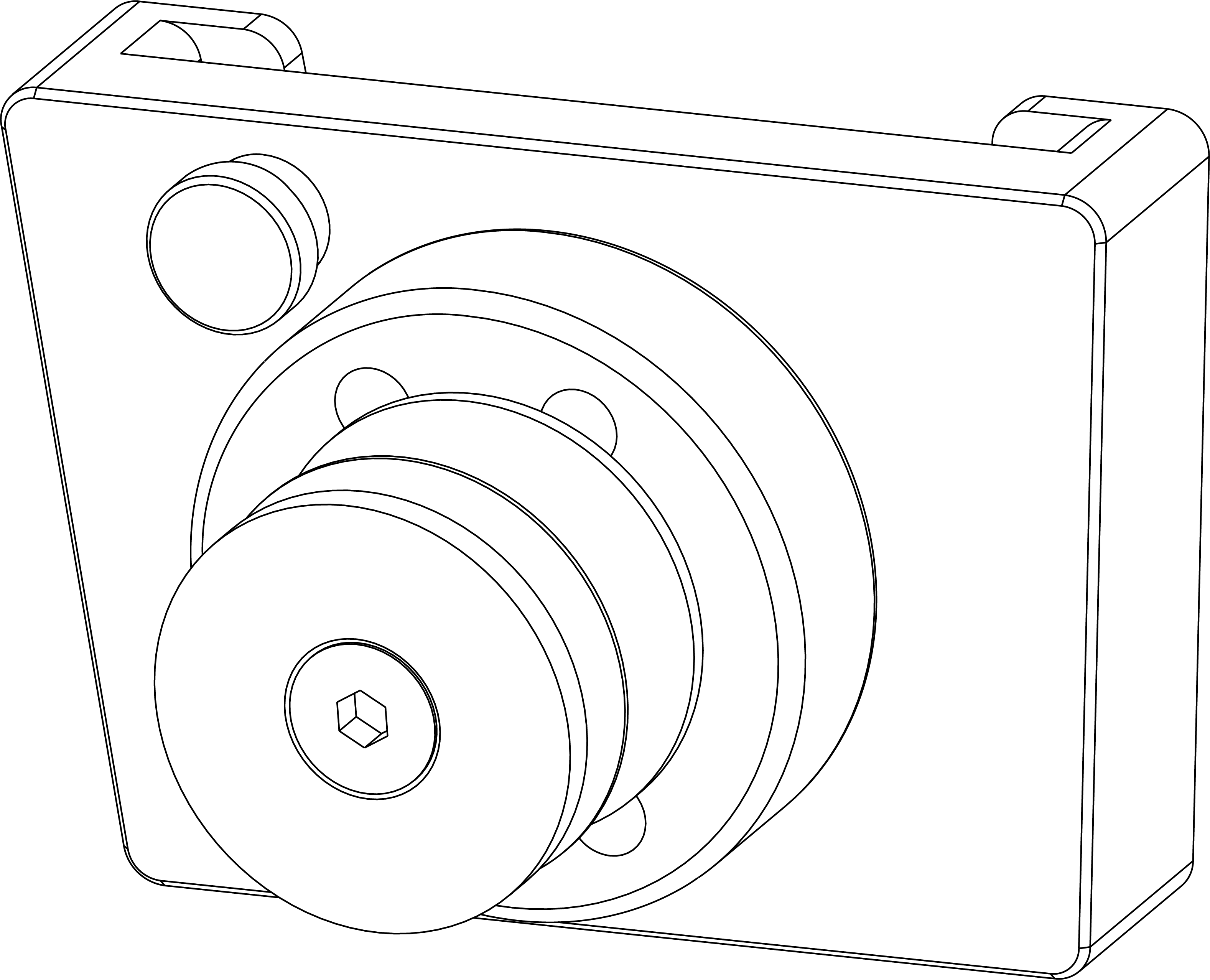

The direct mount wedge receivers is intended to attach to an ideas standard or extended bone when angular or pivoting adjustment is not needed. This creates a lower profile and stronger connection for heavy items. It can be adjusted rotationally 360 degrees and then locked securely in place to fit the clients system.

The direct receiver attaches to the end of an Ideas standard or extended bone.

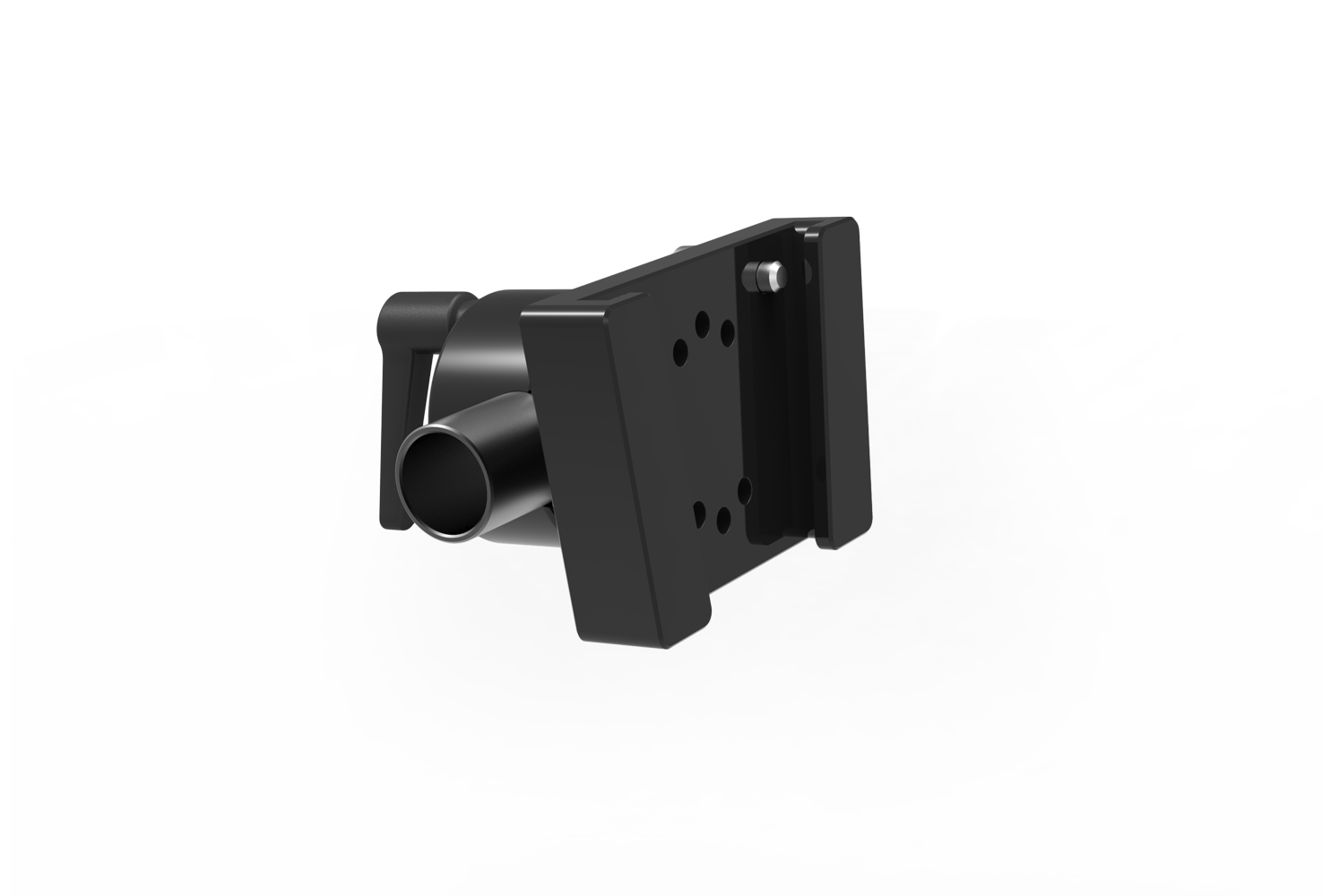

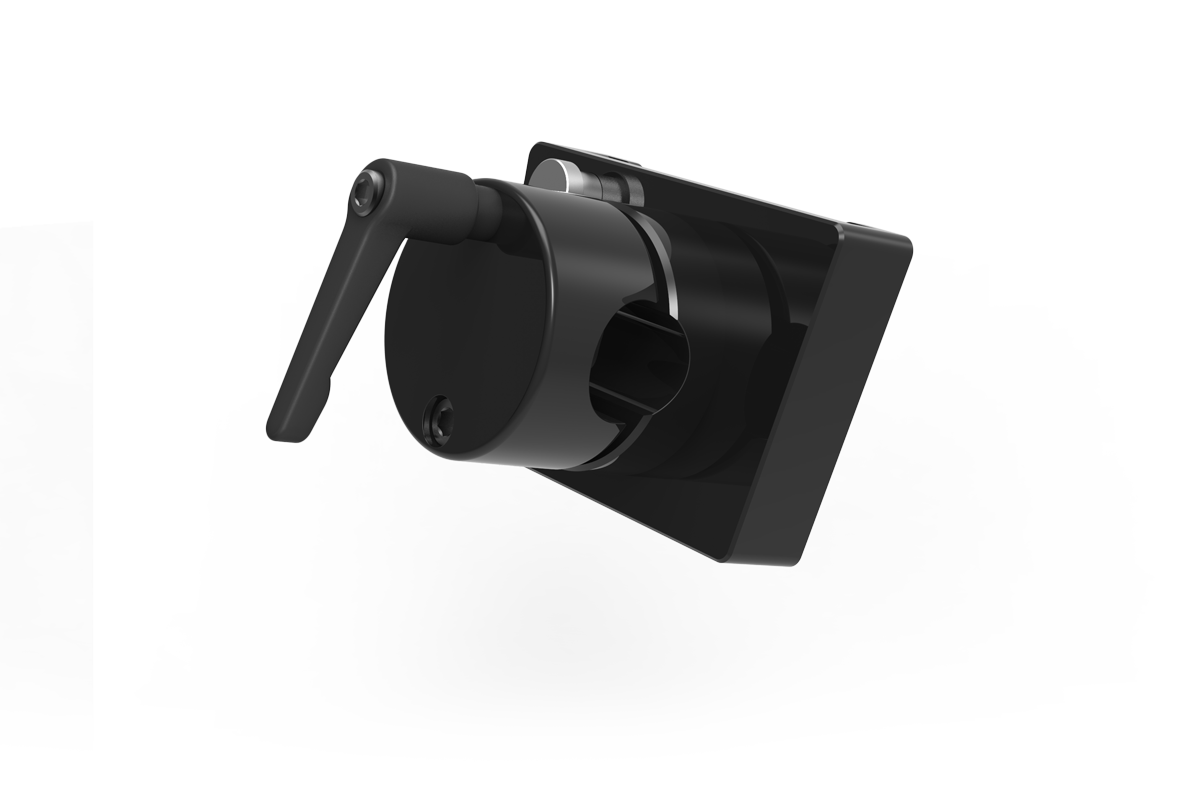

The Heavy Duty Wedge Receiver is similar to the Standard Wedge Receiver in appearance and function, but come with the added strength of anodized aluminum. This gives the Heavy Duty Wedge Receiver more durability and the ability to hold more weight.

The Heavy Duty Wedge Receiver will mount to a tube that is 0.875" in diameter.

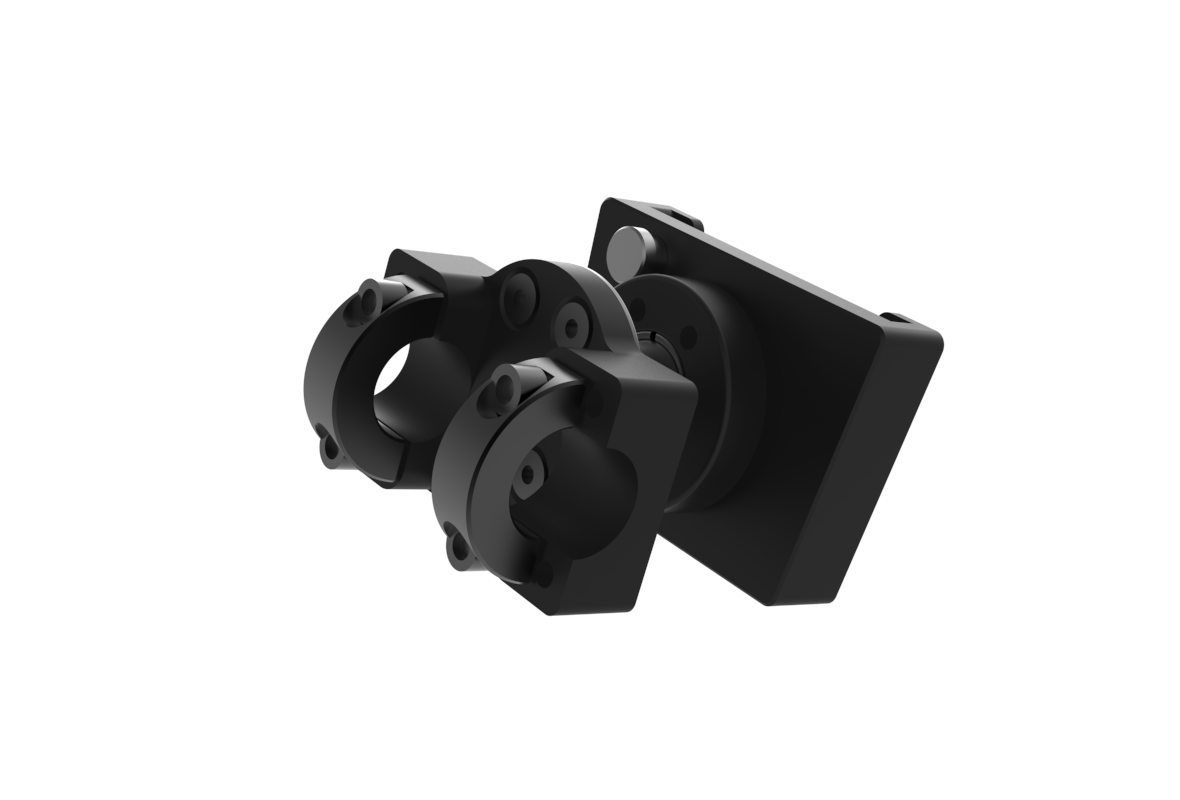

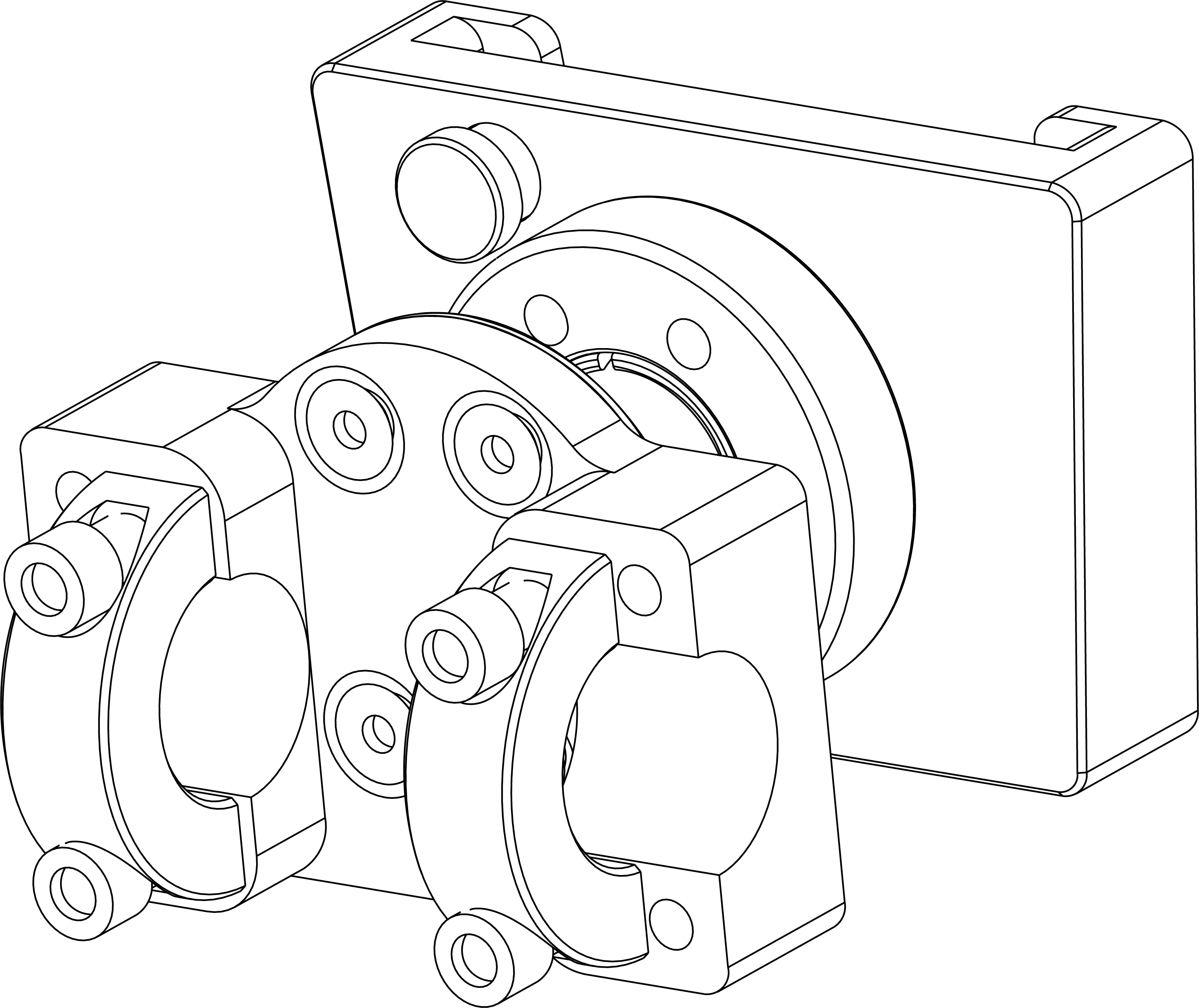

The Ball Joint Wedge Receiver gives the user the freedom of rotation on all axes, while maintaining a sturdy attachment to a horizontal bar. The ball joint allows the device it's holding to be tilted in a way that best suits the user.

The Ball Joint Wedge Receiver will mount to a tube that is 0.875" in diameter.

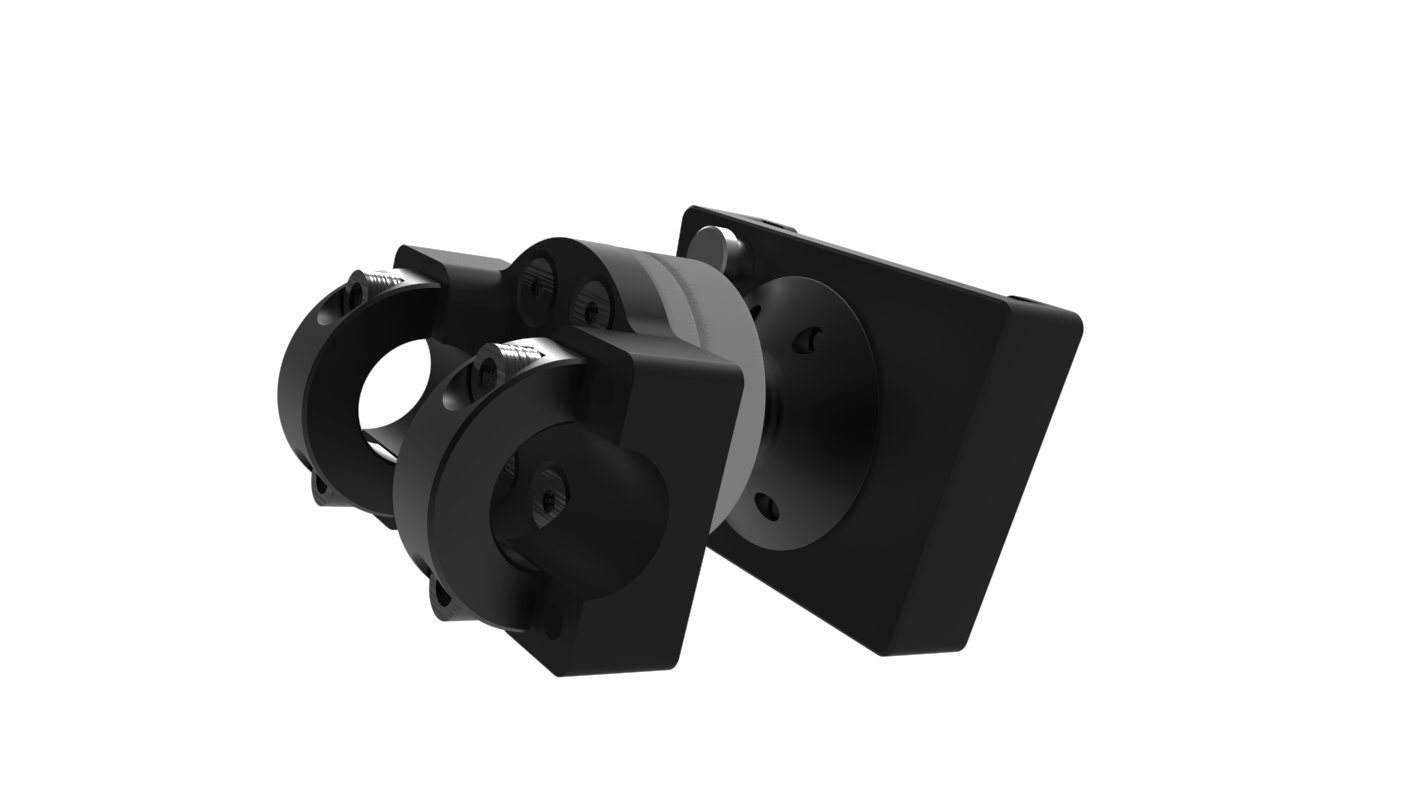

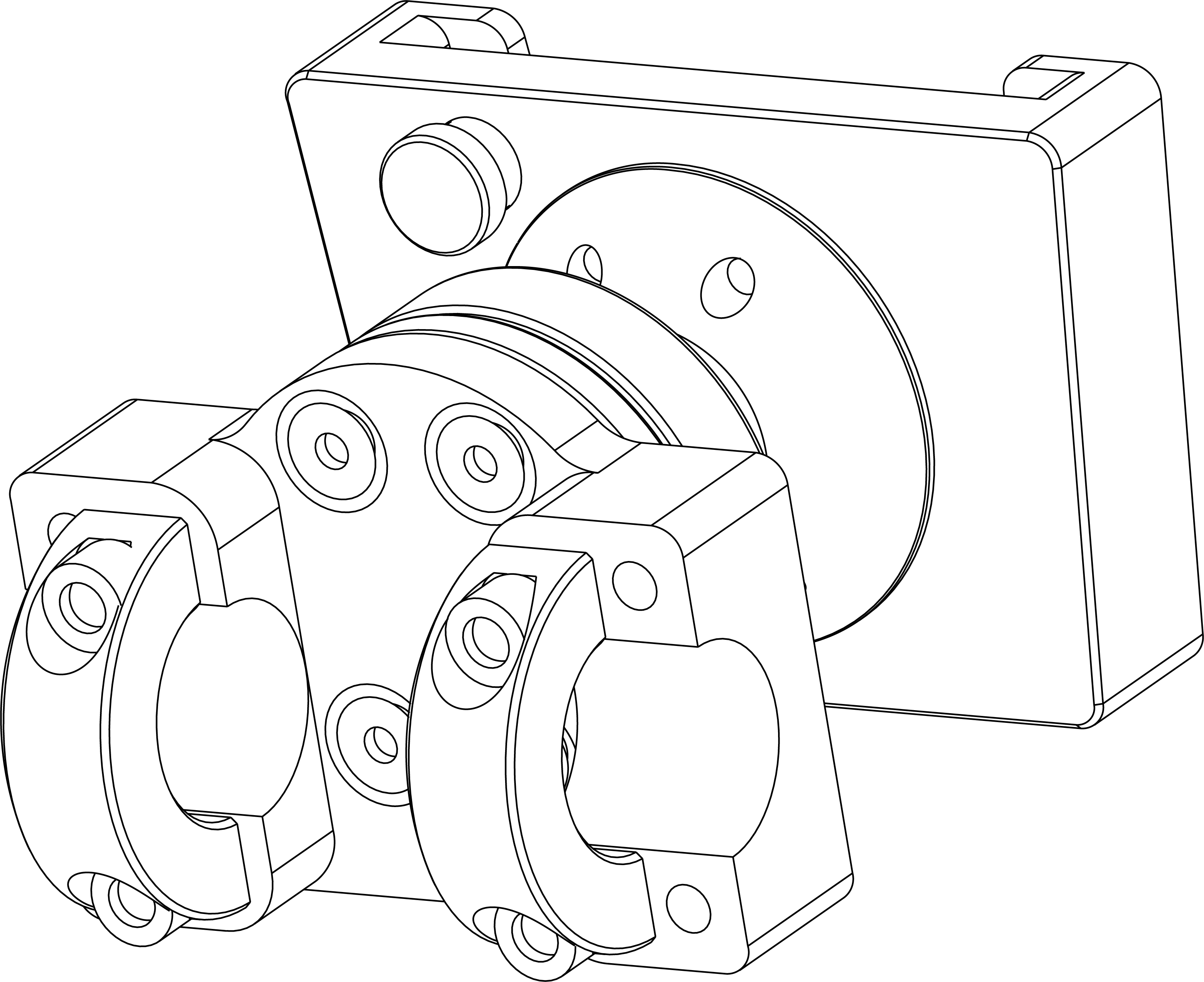

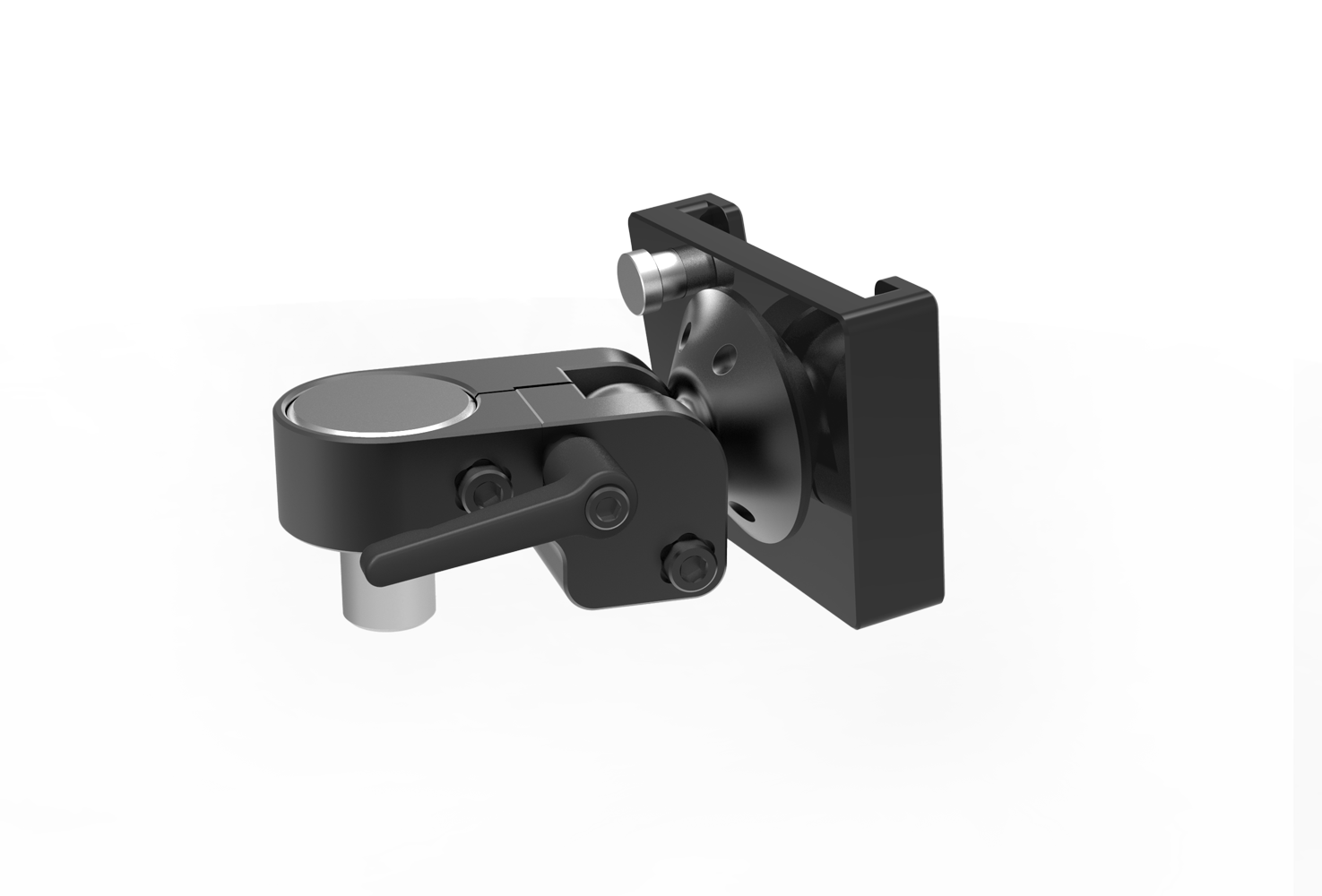

The Multi-Positional Wedge Receiver is much like the Ball Joint Wedge Receiver in that it allows the user to pivot their device on all axes while never losing its connection to the horizontal bar. This wedge receiver comes with the added benefit of being able to lock the receiver's rotation in place once a desirable position is found.

The Multi-Positional Wedge Receiver will mount to a tube that is 0.875" in diameter.

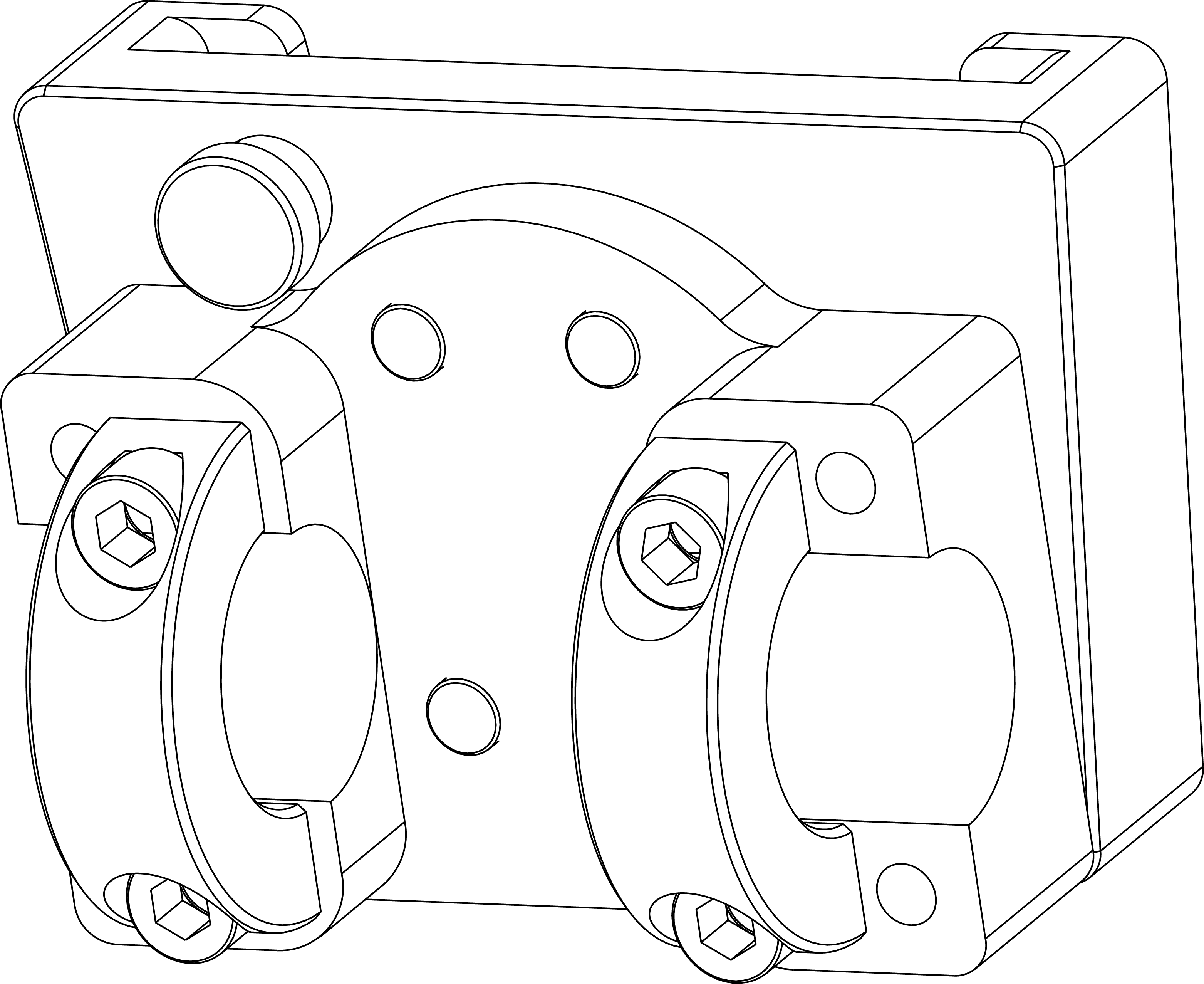

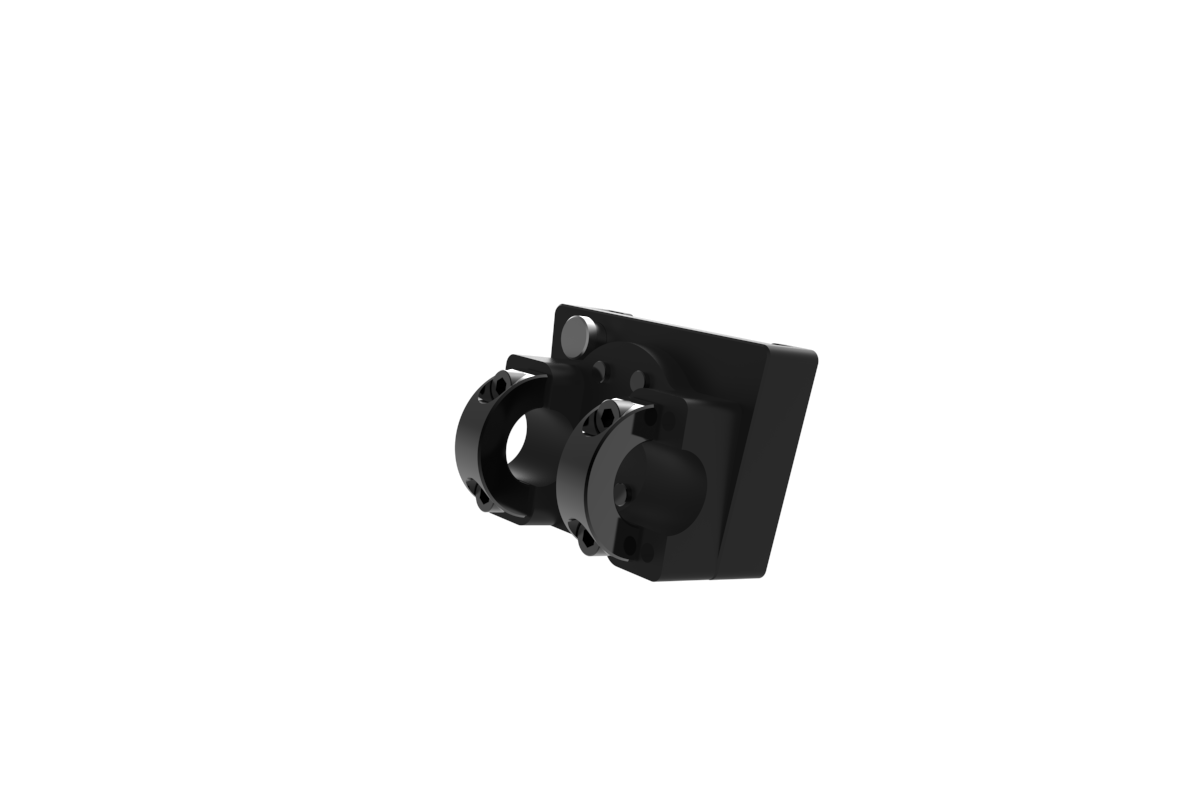

The T-Bar Wedge Receiver is intended for attachment to a vertical T-bar. The wedge receiver is able to rotate around the horizontal portion of the bar until the rear screws are tightened, locking the receiver in place.

The T-Bar Wedge Receiver will mount to a T-Bar with 0.875" diameter (Part # 7485) or 1" diameter (Part # 9552).

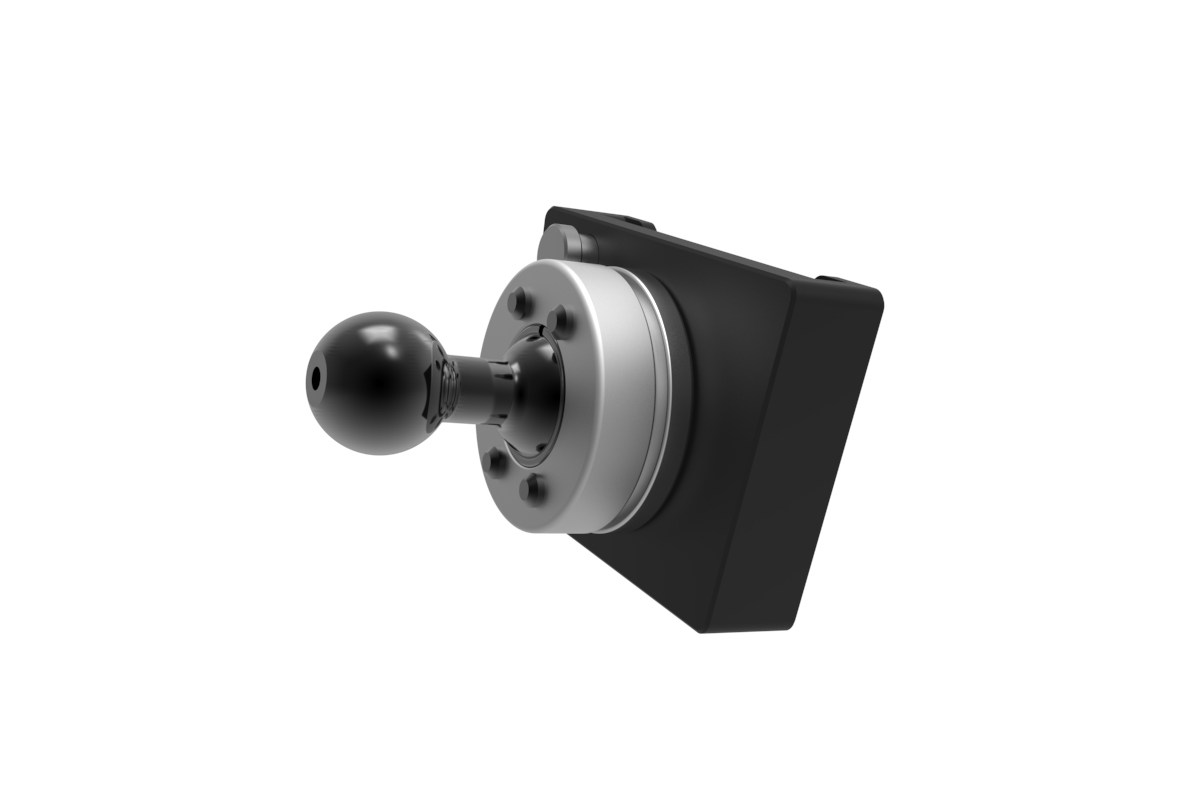

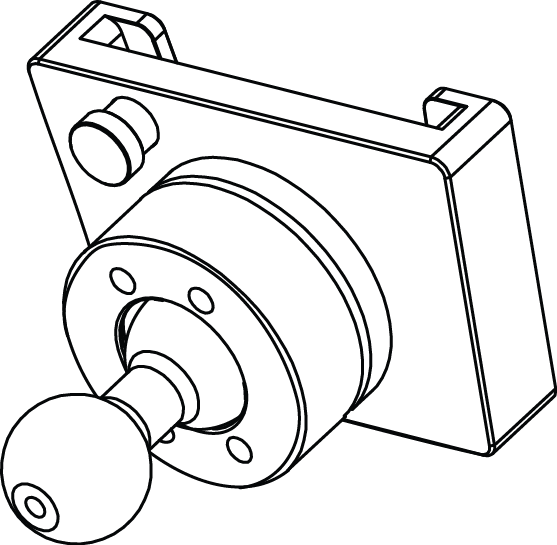

The EG Wedge Receiver operates much like the Rotary Wedge Receiver in that it features a double ball. Having two locking pivot points allows the Wedge Receiver to be more flexible when positioning a mounted device. What sets this Receiver apart is its heavy duty construction and heavier weight bearing capacity.This Wedge Receiver is compatible with any Lift and Lock Arm and is ideal for devices equippped with an Eyegaze attachment.

Functionality

Wedge Receivers were designed as a system to hold a wide range of devices. Each model has its own capabilities and unique features, but the basic functionality of every wedge receiver is the same. With a wedge receiver there is no need to loosen an assortment of screws every time you wish to use your device in a different setting. Rather, wedge receivers lend themselves to various settings and allow you to easily bring your devices with you.

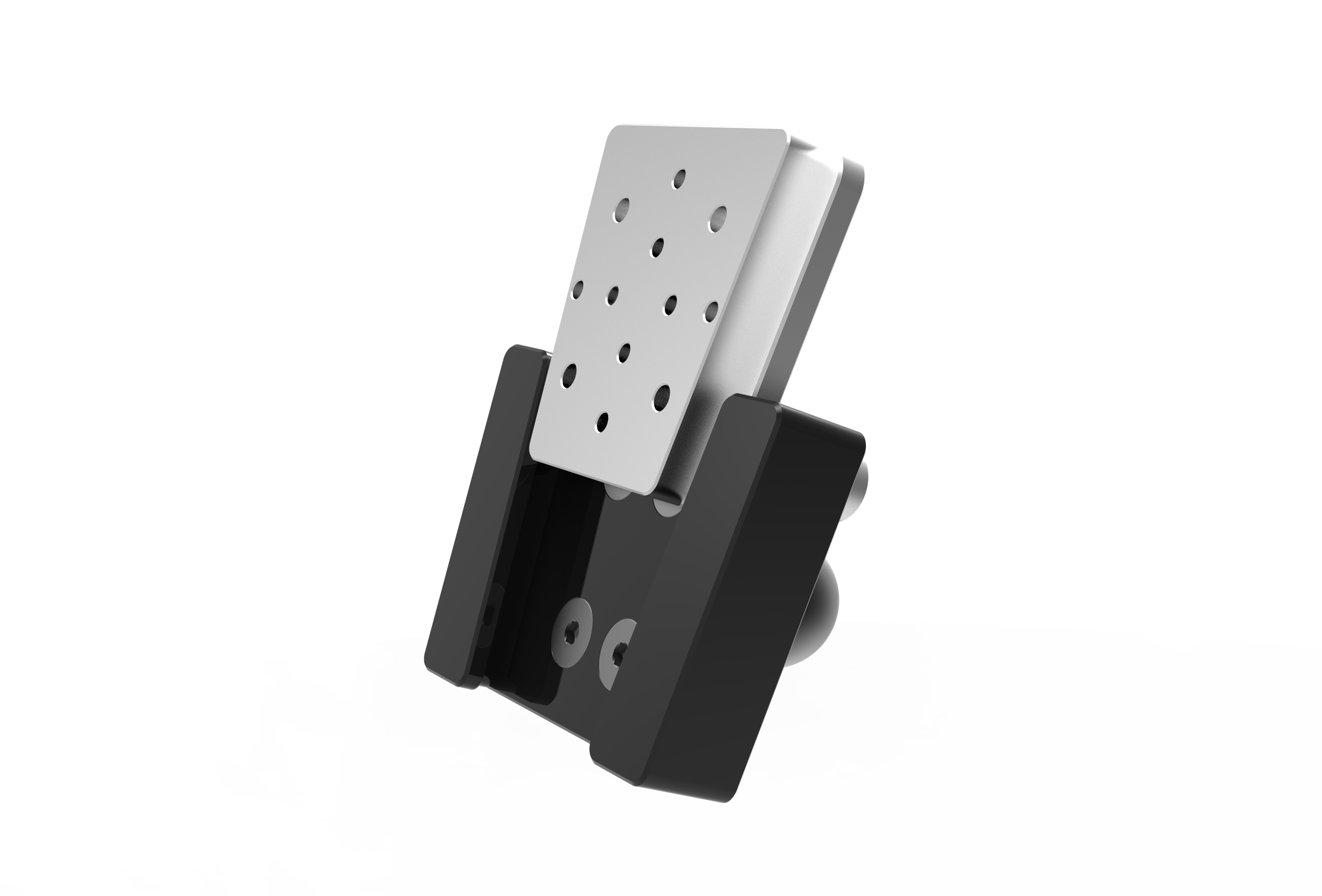

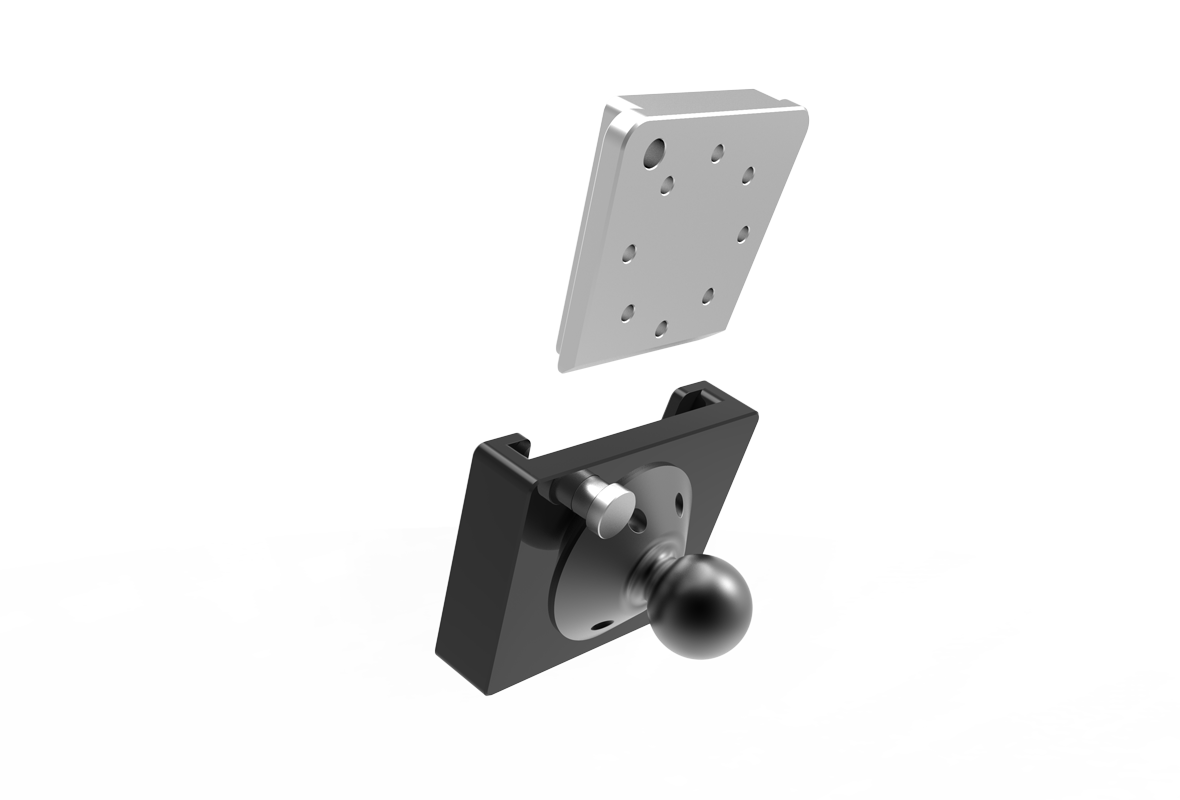

Using a wedge receiver is simple. First, a wedge is screwed to the device you would like to mount. This wedge will slide into the receiver and automatically click in place. To remove your device, simply pull the aluminum pin at the back of the receiver and your device can be lifted out.
