Assisstive Devices Lift and Lock Mounting

Functionality

The Low Vision line of hardware was designed to assist clients with various visual impairments. This equipment can be used to create the most ideal environment for the client by helping to control contrast, and lighting. Each piece of hardware is compatible with the Lift and Lock mounting system, making it easy to install, remove, and reposition.


Wheelchair Disability Device Mounting Equipment
Wheelchair Disability Device Mounting Equipment
Wheelchair Disability Device Mounting Equipment
Wheelchair Disability Device Mounting Equipment
Wheelchair Disability Device Mounting Equipment
Wheelchair Disability Device Mounting Equipment
Wheelchair Disability Device Mounting Equipment
Wheelchair Disability Device Mounting Equipment
Wheelchair Disability Device Mounting Equipment
Blackout Tent System
CVI Switch Plate
Blackout Literacy Plate
Blackout Box/Large Blackout Box
Spotlight
Slant Board
Large Blackout Tray
Light Box
Activity Bar
Assisstive Devices Lift and Lock Mounting Assisstive Devices Lift and Lock Mounting Assisstive Devices Lift and Lock Mounting Assisstive Devices Lift and Lock Mounting Assisstive Devices Lift and Lock Mounting Assisstive Devices Lift and Lock Mounting Assisstive Devices Lift and Lock Mounting Assisstive Devices Lift and Lock Mounting Assisstive Devices Lift and Lock Mounting Assisstive Devices Lift and Lock Mounting

Blackout Tent System

CVI Switch Plate

Blackout Box/Large Blackout Box

Light Box

Spotlight

Slant Board

Large Blackout Tray

Blackout Literacy Plate

Activity Bar

Part # i0268

Part # i0269

Part # i0223
Part # i0346

Part # i0243

Part # i0308

Part # i0255

Part # i0256

Part # i0222

Part # i0345

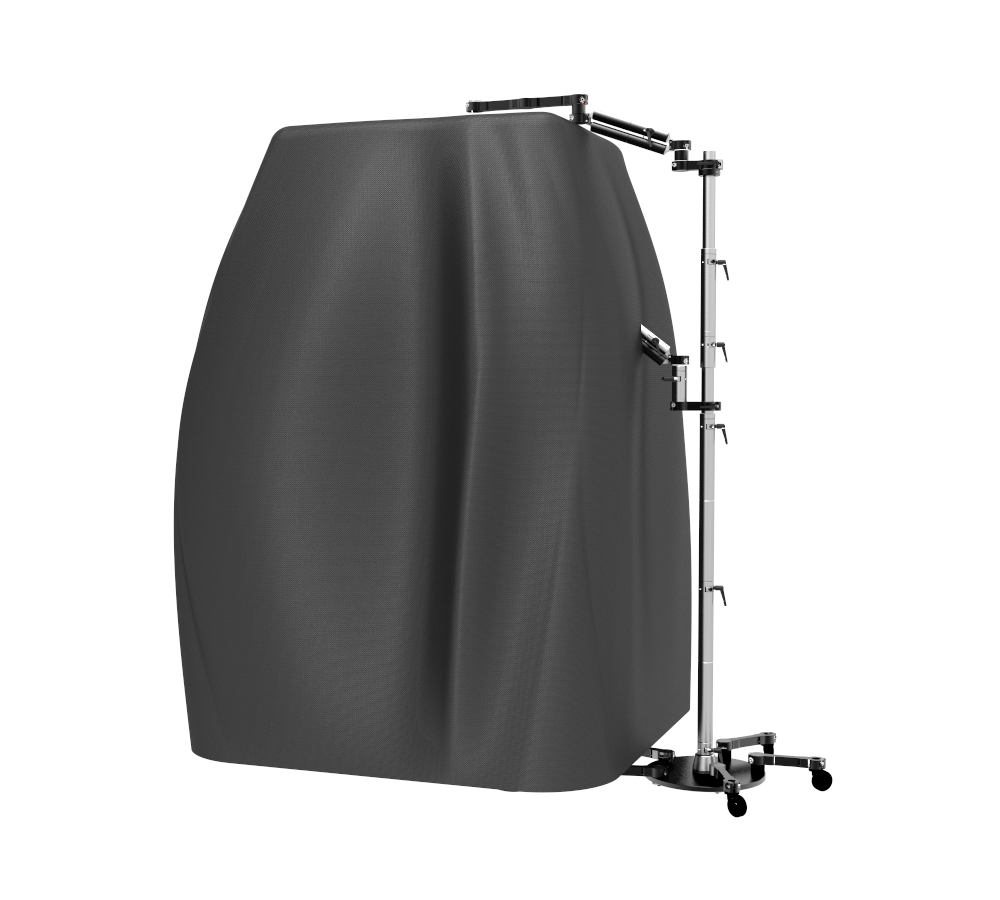

The blackout tent is is used to provide a sensory deprivation space for clients who require minimal visual and auditory distractions. It is adequately sized to fit around most any power chair.

Mounting using Ideas Lift and Lock hardware allows the use of nearly any device inside the tent, as well as a wide range of customization options.


The CVI Switch Plate mounts on to Ideas Lift and Lock wedge receivers.

A hook and loop covering on the face of the plate allows for further quick, tool free position adjustment.


Blackout Boxes function like other literacy plates, using clips plus a hook and loop surface for affixing various media. A three section shade provides customizable environmental light control on both large and standard models. Standard model shades fold flat for storage, while the Large Blackout Box has independently removable side and top panels.


Like a literacy plate, the Ideas light box provides a foundation for literature and other materials to be positioned in front of the client. The light box features an adjustable back light, allowing for the overlay and illumination of any item. It is also fully compatible with all Ideas mounting systems.





The slant board is a multi modal literacy plate. It is usable as a stand alone angle adjustable literacy plate, or mounted to an Ideas mounting arm.


Similar in function to the Ideas Blackout Box, this item provides greater contrast by utilizing a shade. In addition to this, the Big Blackout Tray uses a removable lightweight foam shade that allows the tray to be oriented horizontally or vertically.


Literacy plates provide a sturdy and sizable foundation for placing literature. All Ideas literacy plates are fully compatible with the Lift and Lock line using Ideas wedge receivers. This allows for a wide range of adjustment and compatibility with existing Ideas hardware.

Clips attach variable sizes and types of print in nearly any orientation. A hook and loop covering allows for attachment of other visual aids.


The Activity Bar is a station that can be added to any Ideas arm and is a foundation for hanging items such as toys , shapes, and more. Four eyelet locations can have a wide variety of items attached at any length desired. Once on an Ideas arm it can be angled and located as needed


The Spotlight is an easily positionable auxiliary lamp with a flexible neck section. It is able to clamp on to any device plate, tent frame, or a wide range of other surfaces. It is intended to supplement other lighting by adding a concentrated beam where needed. Plug in to any wall socket for easy universal power

Wheelchair Mounting Device Holder Wheelchair Mounting Device Holder Wheelchair Mounting Device Holder Wheelchair Mounting Device Holder Wheelchair Mounting Device Holder
Blackout Tent CVI Switch Plate Blackout Literacy Plate Blackout Box/Large Blackout Box Spotlight
Width: 40" Width: 3.625" Width: 14" Width: 14" / 14"
Height: 70" Height: 2.5" Height: 5/8" Height: 9.4" / 20" Height: 13"
Depth: 40" Depth: 2.5" Depth: 10" Depth: 12" / 15"
Weight: 15lb Weight: 6.2oz Weight: 7.2oz Weight: 9.2oz
Wheelchair Mounting Device Holder Wheelchair Mounting Device Holder Wheelchair Mounting Device Holder Wheelchair Mounting Device Holder
Slant Board Large Blackout Tray Light Box Activity Bar
Width: 14" Width: 3.625" Width: 17 1/8" Width: 18"
Height: 9" Height: 2.5" Height: 10"
Depth: 14" Depth: 2.5" Depth: 12"
Weight: 6.5oz Weight: 6.2oz Weight: 12.7oz
